1500V Power Drawer Connector High Current Heavy Load 19 Pin 15A Right Angle

  • Reliable Connection, Soft Insertion.
  • Removal, Low Insertion Force.
  • Low Contact Resistance.
  • High Load Current.
  • Excellent Performance.
  • Custom design flexibility.
  • Options for power contact spacing.
  • High strength housings

Get a Quotation

The Power Drawer Connector is an advanced modular power interconnect system for power systems and electrical hardware designers. Featuring a cutting-edge Crown Spring Socket and silver plating, it ensures optimal contact reliability. The connector offers a modular tooling platform, allowing for a plethora of configurations with a single housing accommodating up to 10 modules. With the ability to choose from five distinct contact types in each module, it provides unparalleled design flexibility. Key attributes include a reliable connection, soft insertion and removal with minimal force, low contact resistance, and high load current capacity. It boasts superior performance, custom design flexibility, options for power contact spacing, and robust housing strength.

1500V Power Drawer Connector High Current Heavy Load 19 Pin 15A Right Angle Feature

Product Type
Gender: Female, Male
Orientation: Straight
Number Of Positions: 19 Pin
Mounting Type: Panel Mount
Contact Termination: Crimp
Shell Material: PBT
Contact Material: Copper, Copper Alloy
Contact Finish: Gold Plating, Silver Plating
Contact Quantity: 19Pin Power (Φ5.0: 15A)
Electrical
Rated Current: 15A
Withstand Voltage: 1500V
Insulation Resistance: ≥1000MΩ
Contact Resistance: ≤1.0MΩ
Mechanical
Mating Cycles: > 1000
Mating Cycles
Operating Temperature: -55℃~+125℃

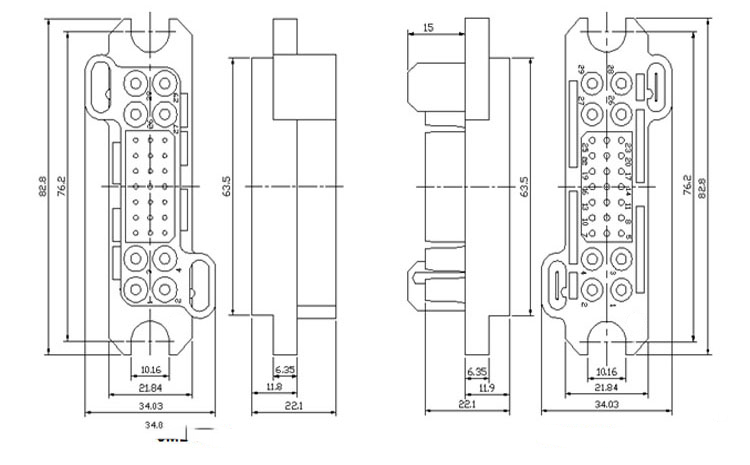

1500V Power Drawer Connector High Current Heavy Load 19 Pin 15A Right Angle Drawing

Weight 124 g
Number of Positions

19 Pin

Contact Quantity

10Pin Power (16#:15A)+9Pin Signal (22#:3A)

Mount Style

PCB Tail(B)

Current Rating

15A

Orientation

Right Angle

Gender

Male, Female
