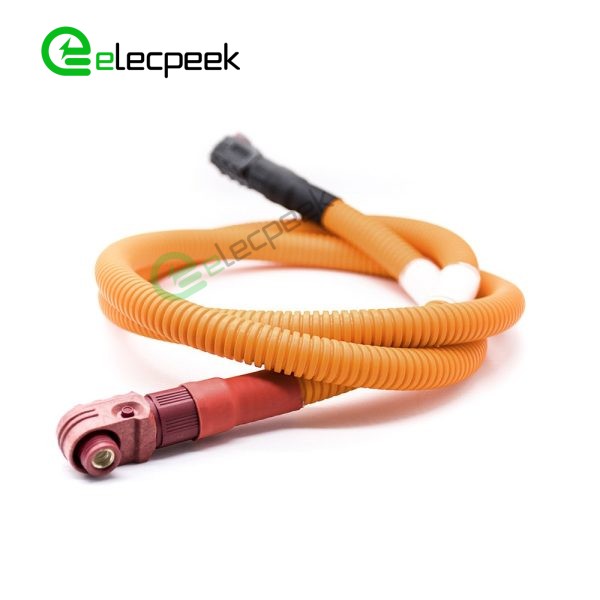

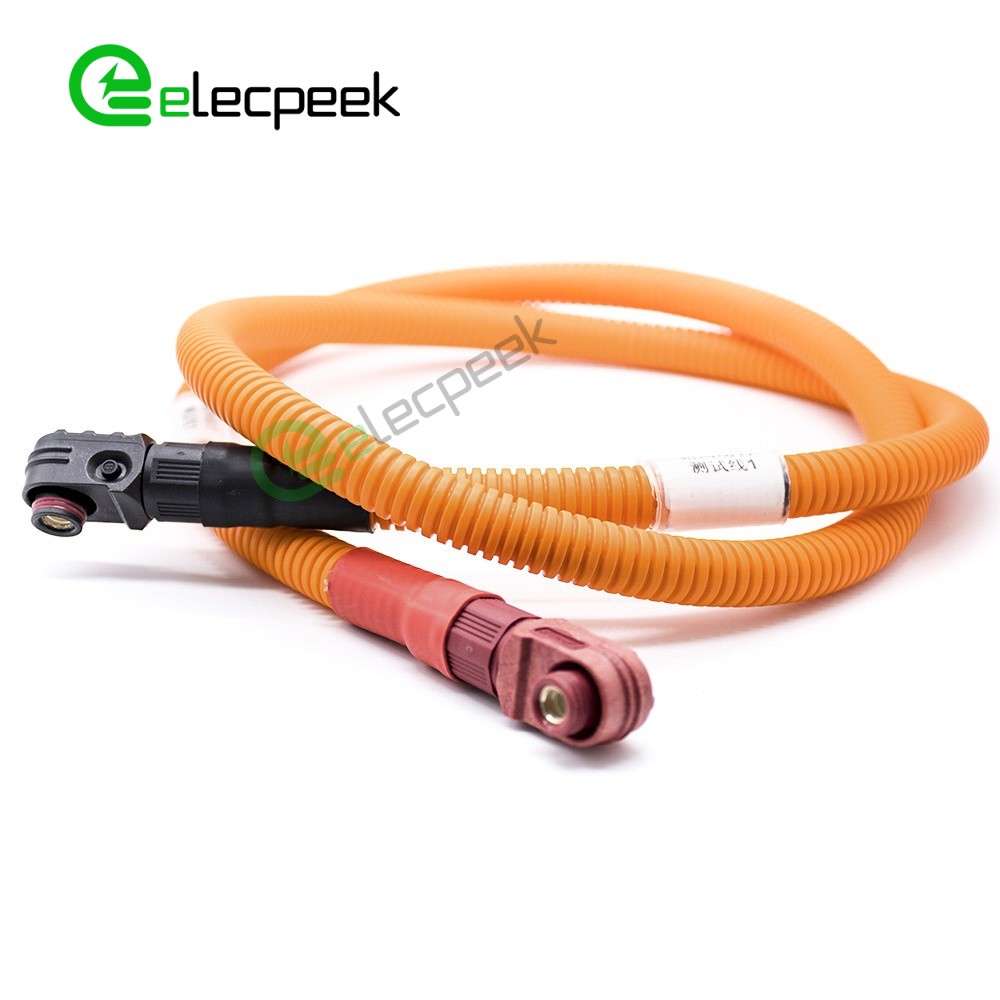

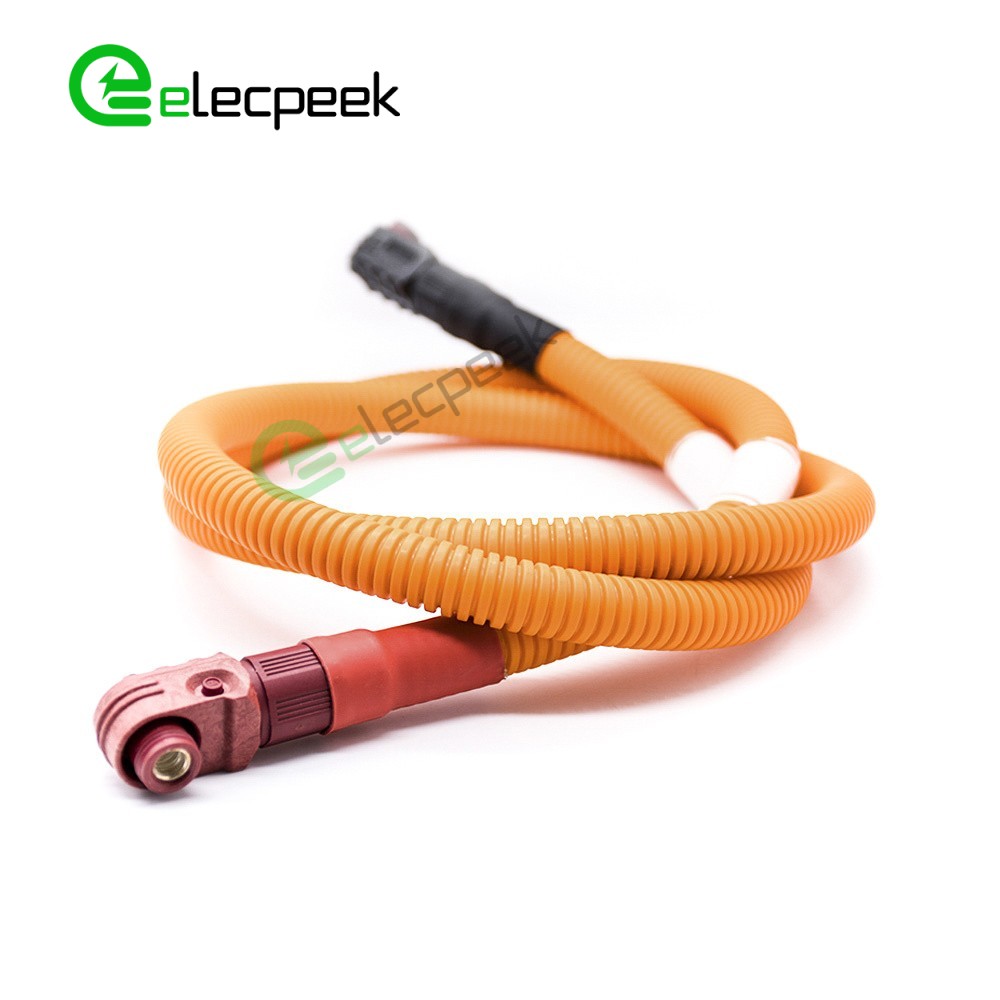

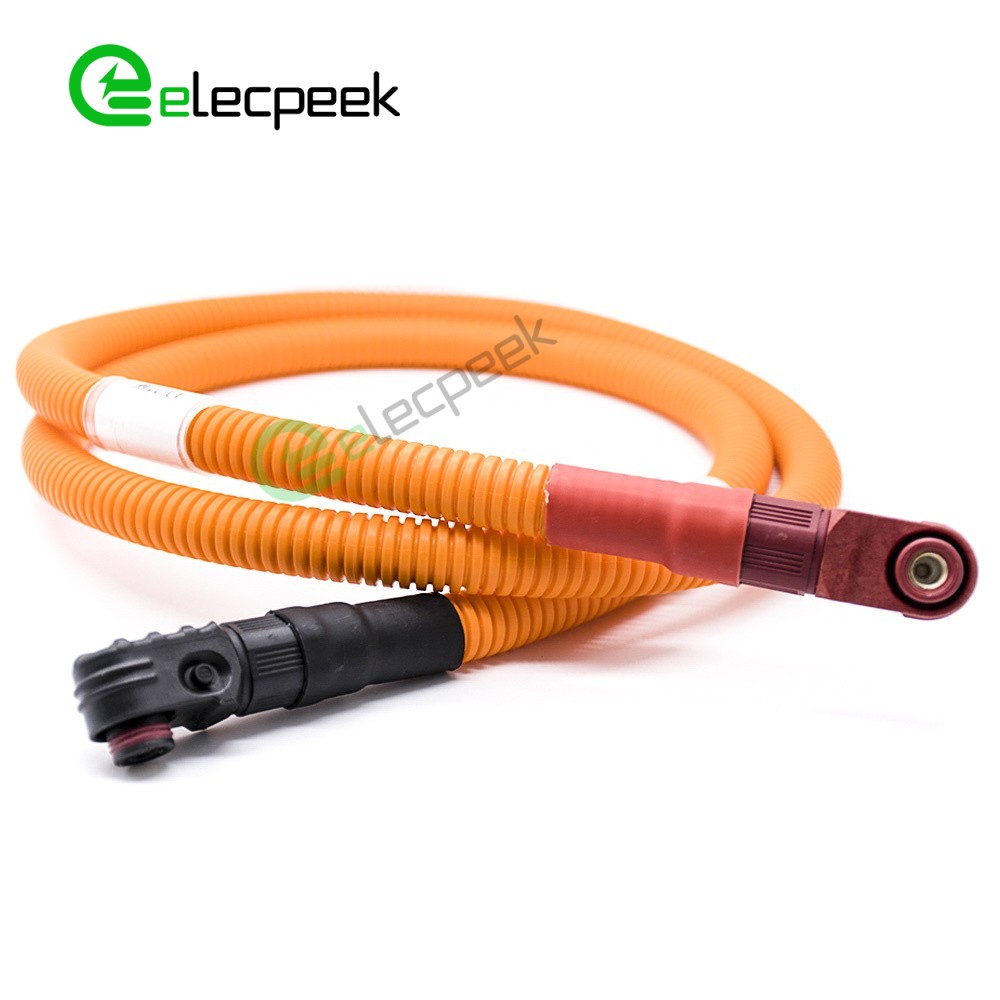

200A High Current Energy Storage Connector Cable 1 Pin 90° Plug To Plug Red To Black 8mm Plastic IP67 50mm2
- Touch Proof .
- 360°rotating Plug.
- Compact Robust Design.
- Various Termination Options.
- Three Color Are Available.
- Quick Lock And Press-to- Release Design.
?Inquiry Form for Bulk Order?
Please fill in your details and requirements below, and our team will get in touch with you as soon as possible.
Energy storage connector compression lug is a field installable, high reliable alternative to common compression lugs. Using industry standard crimp, screw, and busbar termination options, thus eliminating the need to purchase special torque tools.
This connector available in smaller sizes, and features a quick lock and press-to-release design.
Incorporating the latest flexcoil finger connecting technology, our energy storage connector is a compact, quick mating, and robust product line.
Battery Storage Connector Cable
Material | |
Shell | PA66 |
Contact | Copper Alloy, Silver Plating |
Electrical Performance | |
Rated Voltage | 1000V/DC |
Rated Current | From 60A to 500A MAX |
Withstand Voltage | 2500V AC |
Insulation Resistance | ≥1000MΩ |
Mechanical Performance | |
Terminal | 6-12mm |
Cable Range | 10~95m㎡ |
Connection Type | Terminal Machine |
Mating Cycles | >500 |
Shielding | 360° |
Environmental Performance | |
IP Degree | IP67 |
Operating Temperature | -40℃~125℃ |
Flammability Rating | UL94 V-0 |
Application | |
BMS / Energy Storage | EV / HEV |
Rail Mass Transit | Process Control / Automation |
Heavy Equipment |
Weight | 147 g |
---|---|
Connector Type | Plug |
Cable Type | Double Ended Cable |
Gender | Male to Male |
Current Rating | 200A |
Wire Gauge | 50m㎡ |
Terminal | 8mm |
Color | Red |
