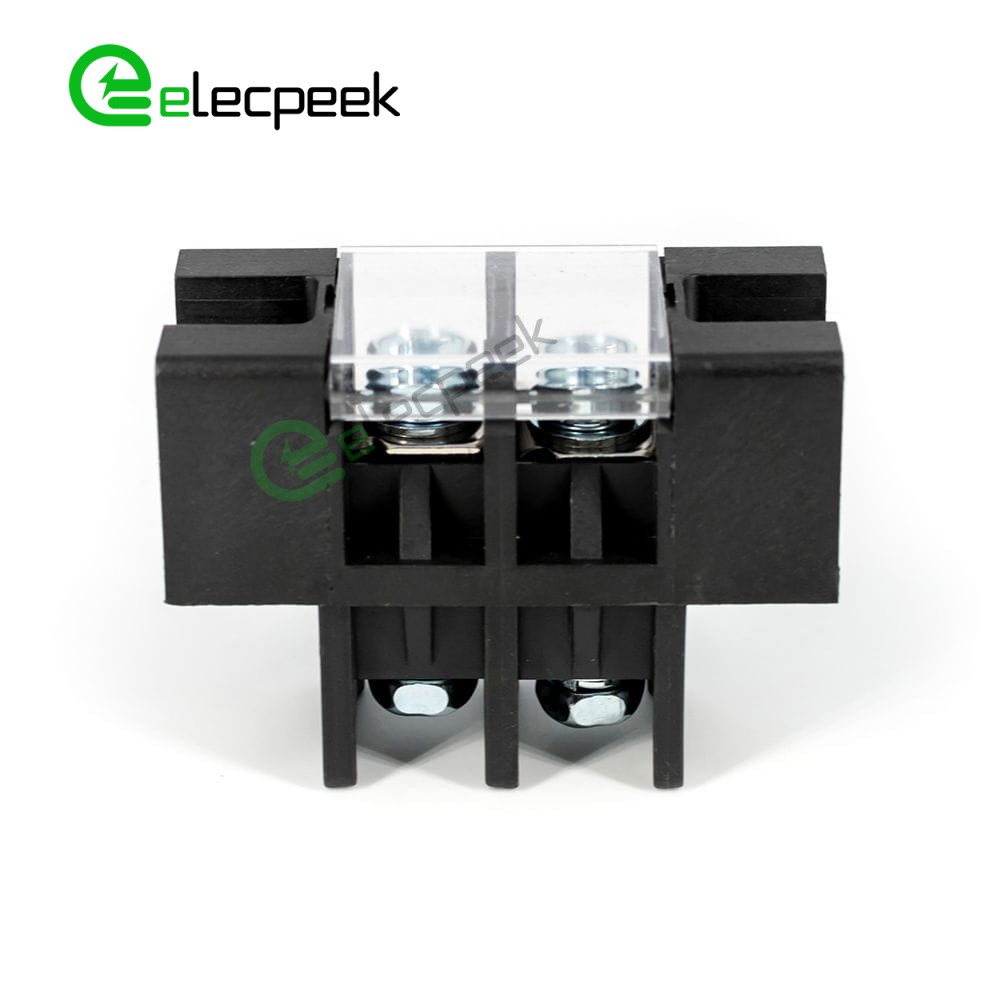

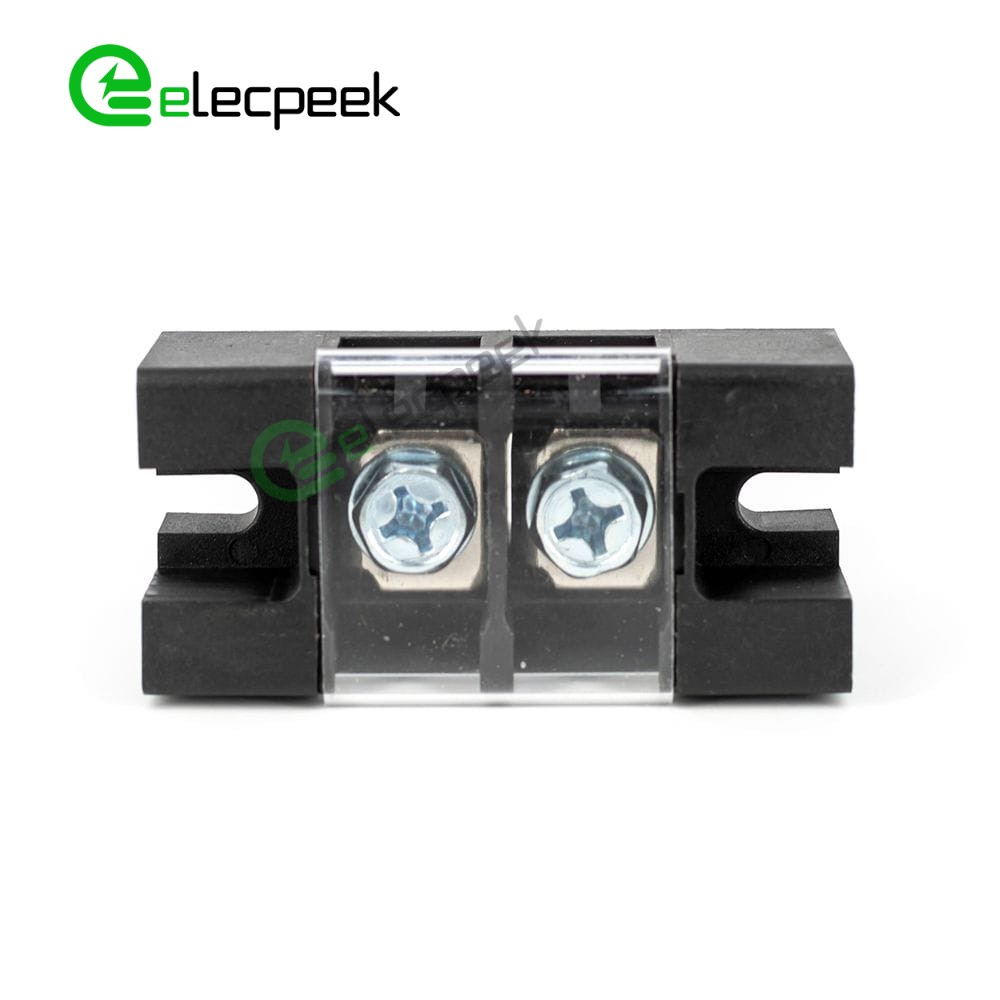

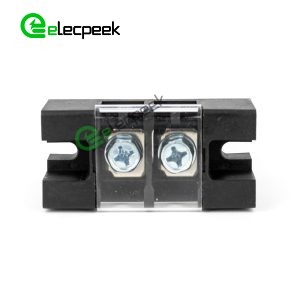

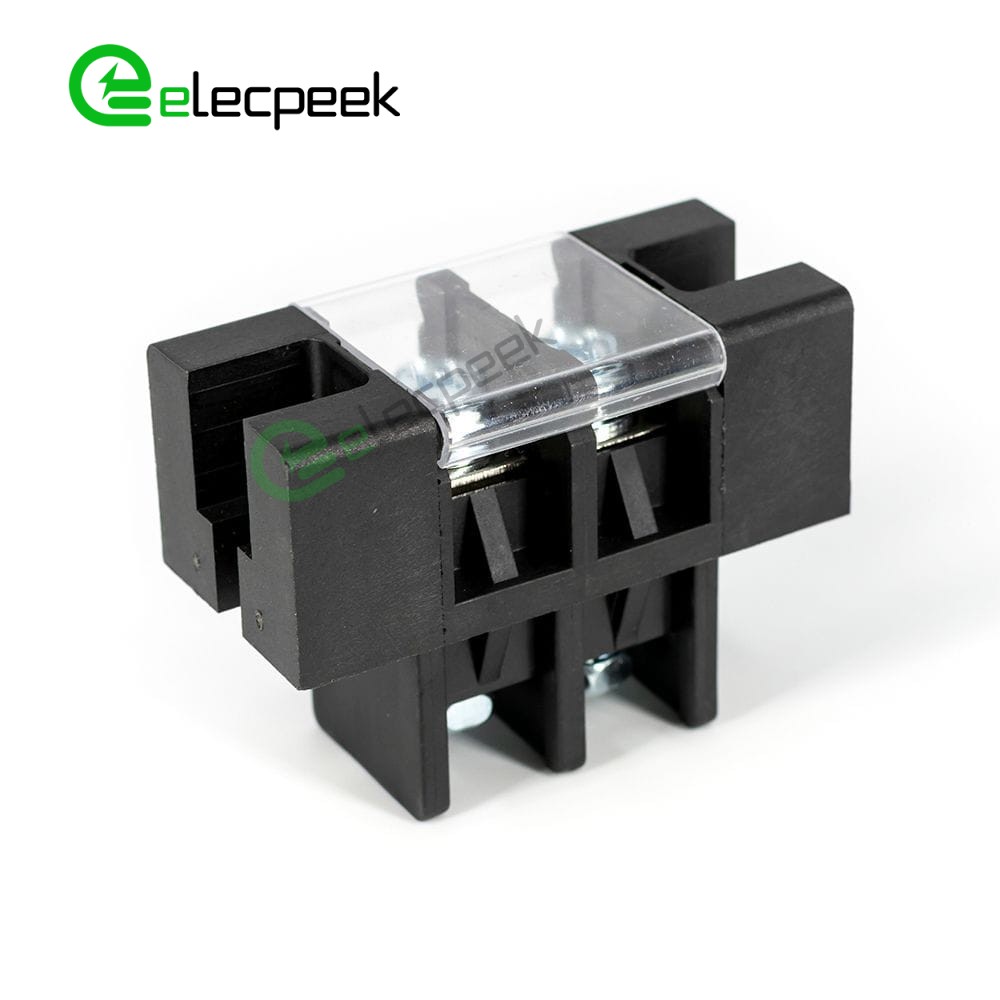

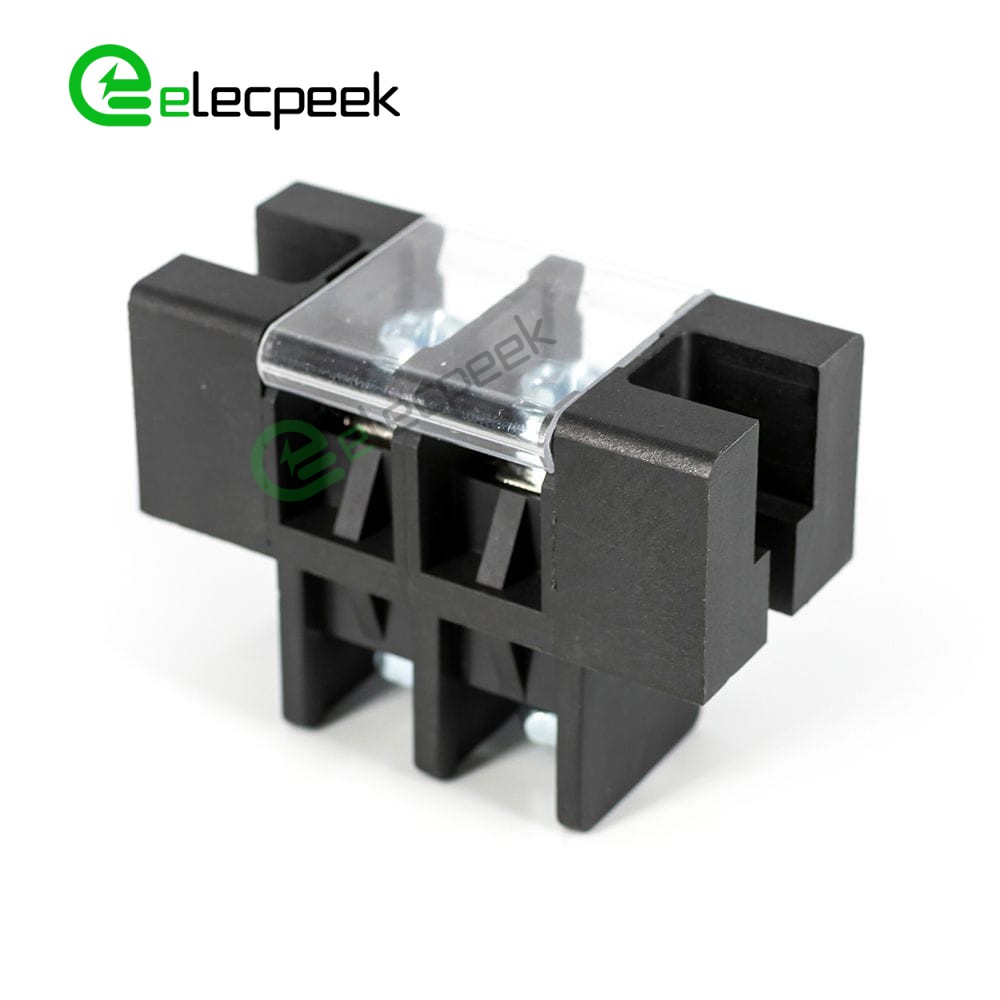

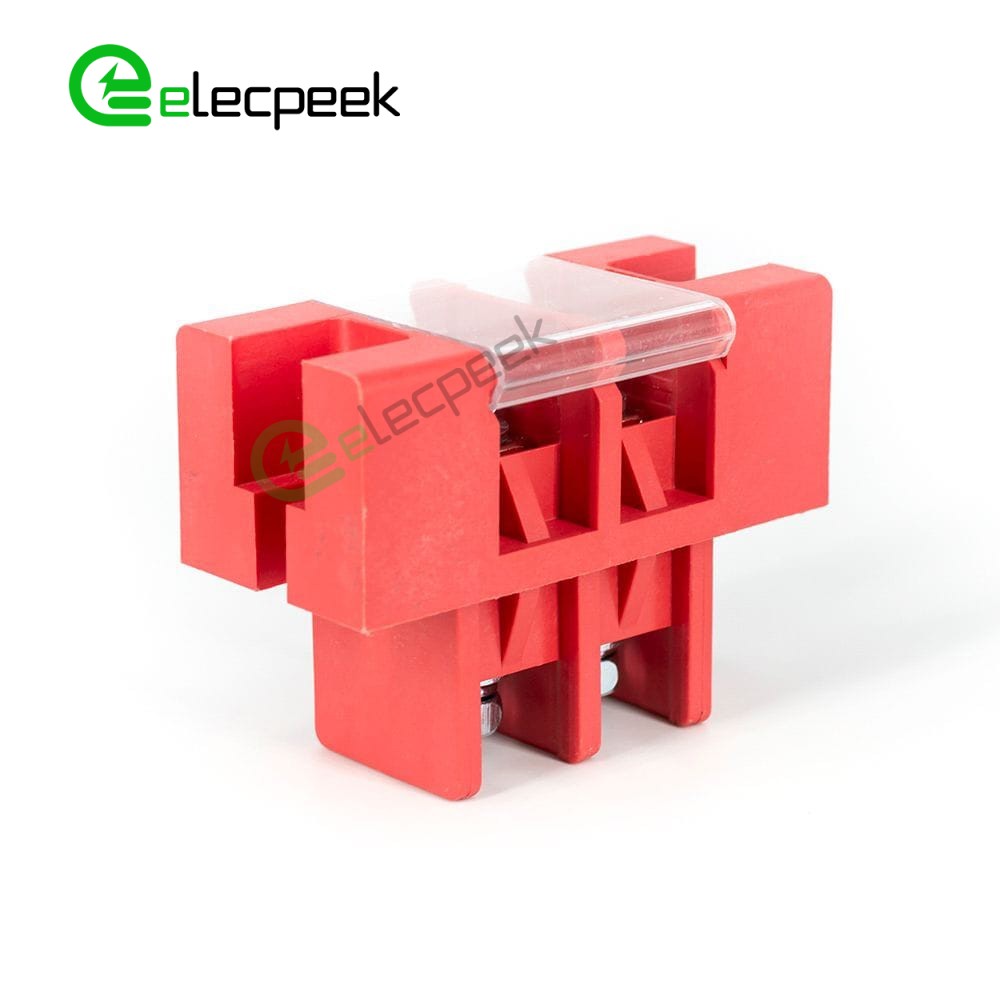

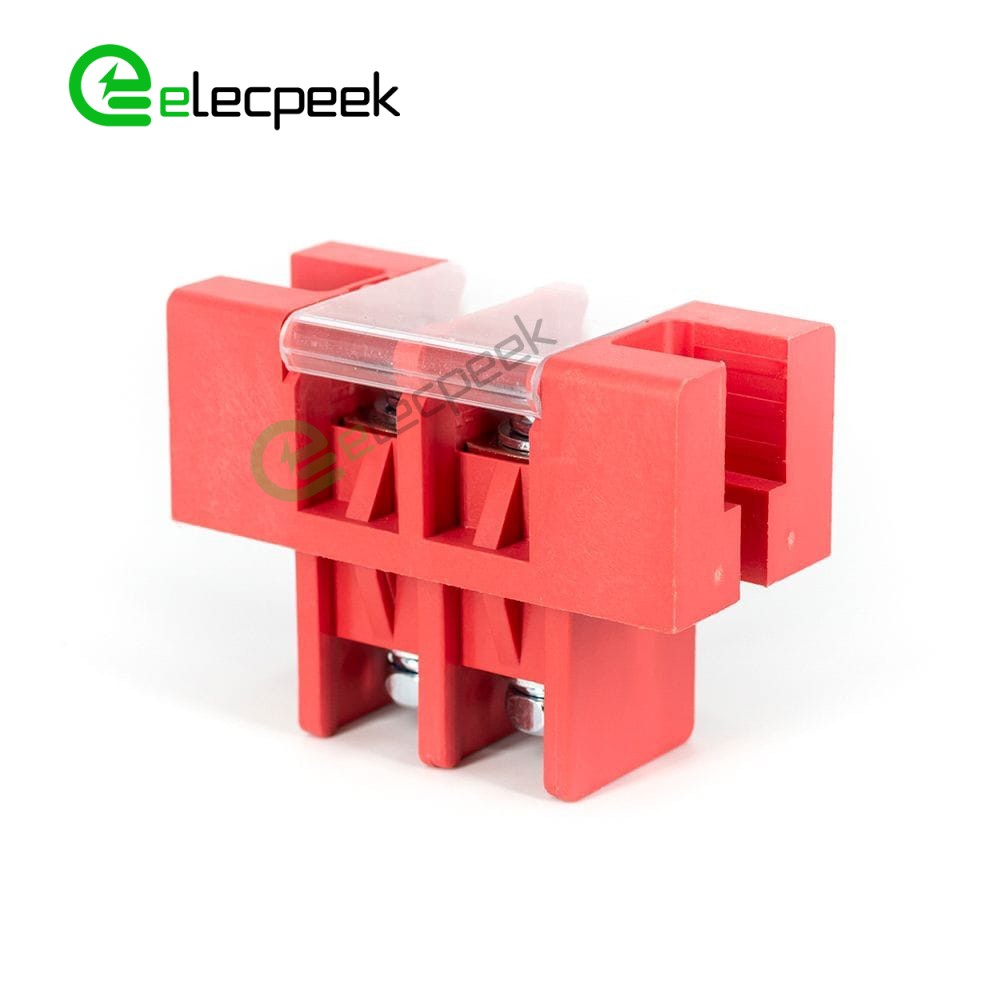

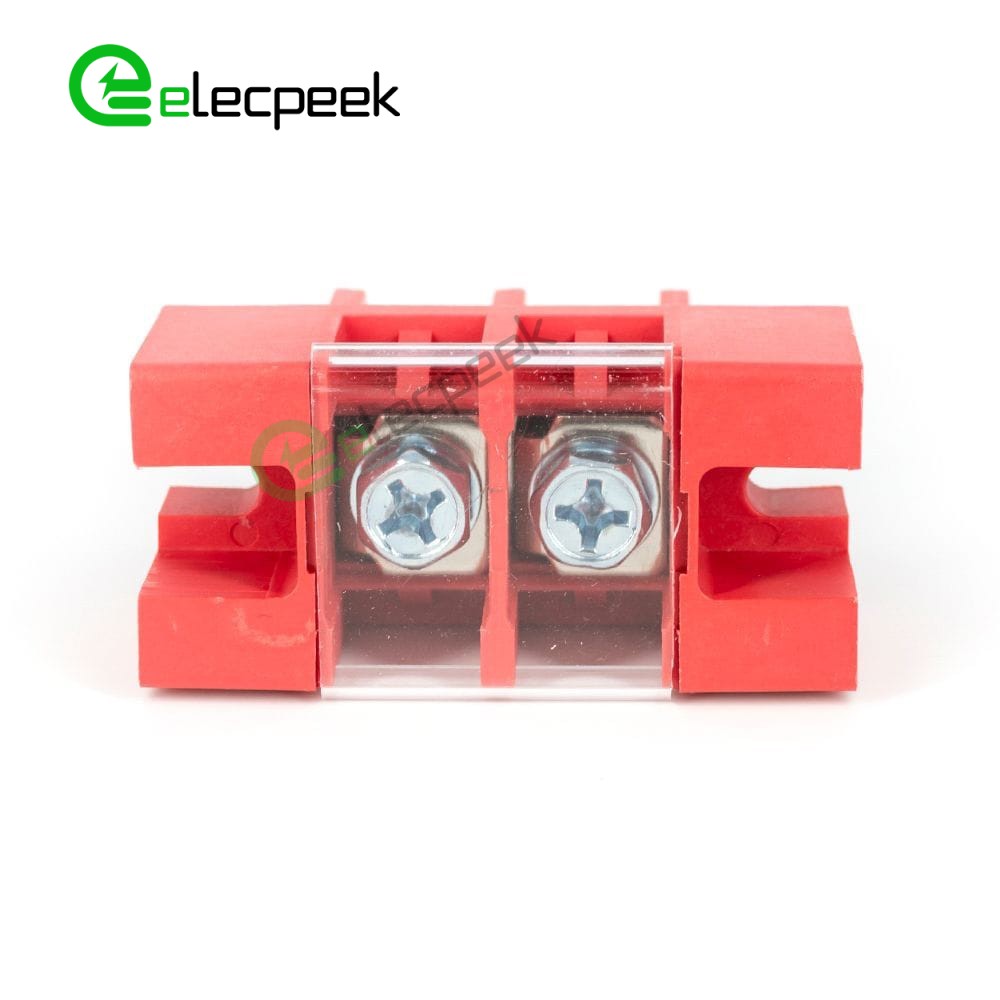

75A 2 Pin Panel Feed Through Terminal Block 600V 22mm2 UL94-V0
- Single In/Out, Two In One Out, Customizable
- Three styles to choose from, consult customer service for details.
- Pure Copper Thickened Conductor
- Flame Retardant V0 Shell
- Load Stability
- Thickening Electroplating
The Panel Feed Through Terminal Block Connector is a versatile and dependable solution for seamless electrical connections. Crafted with a metal core enclosed in durable insulating plastic, this connector is optimized for both high current and high voltage environments. It features a straight orientation with copper contact material, catering to various pitches and positions. Available in both red and black, the connector is resilient across a temperature range of -40°C to +105°C.
Applications:
Primarily used in PCB setups, power supplies including frequency converters, server sites, and electric lighting, this connector is equally pivotal in motor and industrial controls, rail transportation, communication systems, and safety infrastructure like security and medical equipment.
Its compact yet flexible design ensures a safe, reliable, and effective connection across diverse industries and applications.
75A 2 Pin Panel Feed Through Terminal Block 600V 22mm2 UL94-V0 Feature
Product Type | |
Orientation: | Straight |
Number Of Input Positions: | 2 |
Number Of Output Positions : | 2 |

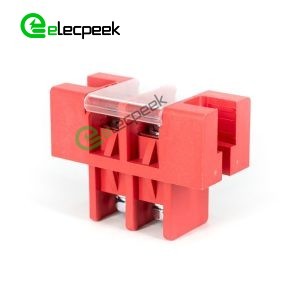

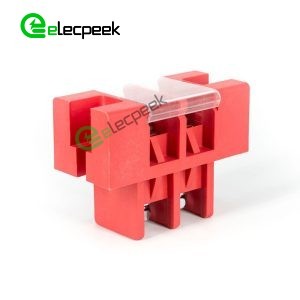

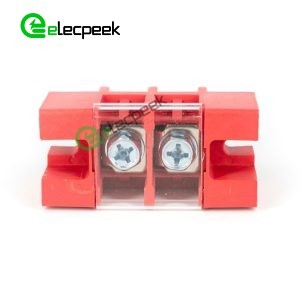

Color: | Black, Red |
Mounting Type: | Panel Mount |
Docking Method: | Thread |
Terminal Block Type : | Bulkhead Terminal Block |
Top Termination: | Screw with Fastening Plate |
Bottom Termination: | Screw |
Terminal Material: | Cooper |
Insulation Material: | PBT |
Pitch: | 16mm |
Wire Gauge: | 22mm² |
Electrical | |
Rated Current: | 75A |
Rated Voltage: | 600V |
Withstand Voltage Value: | AC 3000V |
Insulation Resistance: | DC 500V 1000MΩ or more |
Operating Temperature | -40℃~105℃ |
Standards and Specifications | |
Relative Humidity: | 5% to 95% |
Flammability: | UL94-V0 |
Panel Feed Through Terminal Block Drawing
Weight | 81 g |
---|---|
Orientation | Straight |
Number of Input Positions | 2 |
Number of Output Positions | 2 |
Color | Red |
Mounting Type | Panel Mount |
Docking Method | Thread |
Terminal Block Type | Bulkhead Terminal Block |
Top Termination | Screw with Fastening Plate |
Bottom Termination | Screw |
Terminal Material | Cooper |
Insulator Material | PBT |
Current Rating | 75A |
Voltage Rating | 600V |
Withstand Voltage Value | AC 3000V |
Insulation Resistance | DC 500V 1000MΩ or more |
Pitch | 16mm |
Wire Gauge | 22mm² |
Working Temperature | -40℃~105℃ |
Relative Humidity | 5% to 95% |
Flammability Rating | V0 |
