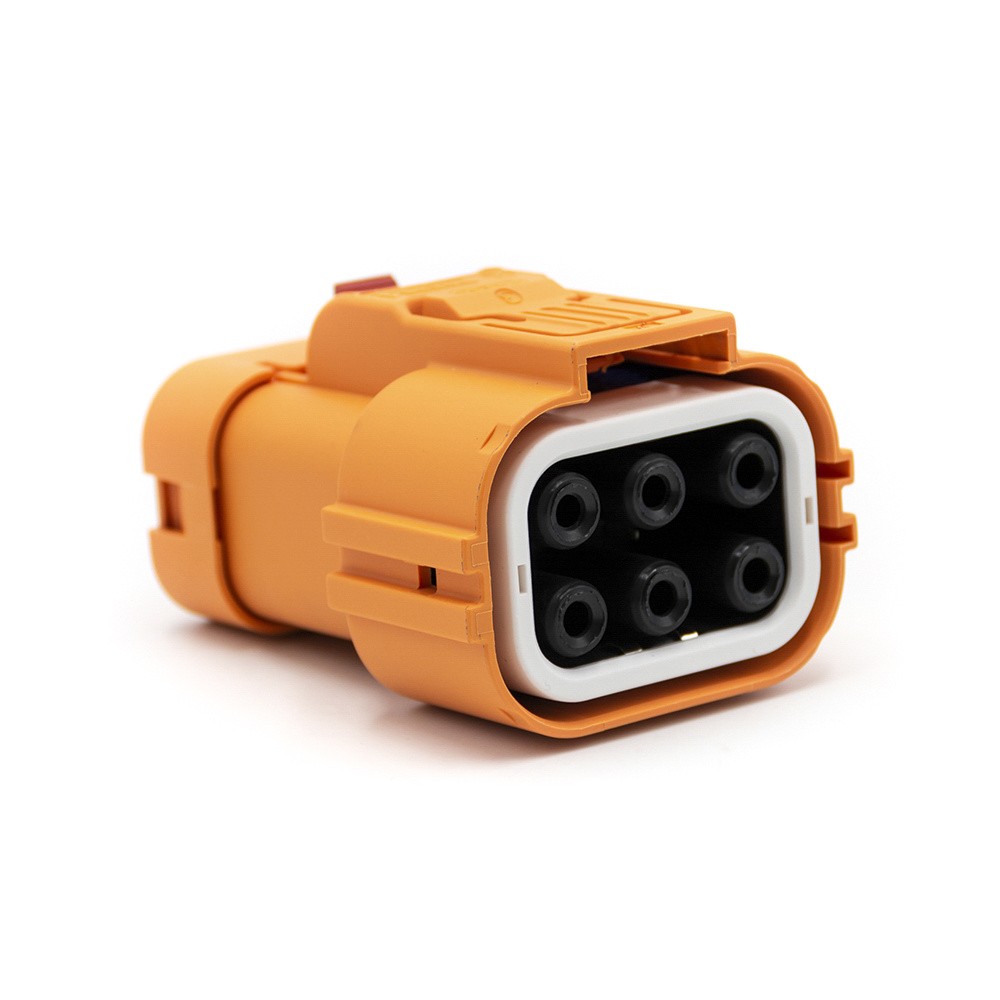

High Voltage Interlock Connector Low Current Plug 6Pin 40A 6mm2 Straight Plastic

SKU: RHT535000-A-6

  • Excellent Electrical Insulation.
  • Various Wire Diameter Application.
  • Multi Misplug-proof and Key Position Design.
  • Secondary Buckle.
  • Sealing, IP67,Touch-Proof.
  • Multiple Coding Positions.

Get a Quotation

HVIL connectors consist of a plug wrench with a slot, a secondary lock with a guide slot and a high voltage interlock microswitch to form the interlocking mechanism.
HV interlocking connectors include high voltage, high current and signal connection solutions for hybrid and electric vehicle high voltage power harnesses and signal connections.
The high voltage interlocking connectors are available in a wide range of product options, 1-pole to 3-pole, rated from 23a to 250a, touch-proof, and available with single or multi-core shielded cable.

High Voltage Interlocking Connectors (HVIL Connectors)

Material

Shell: PA66、Zinc Alloy
Contact: Copper Alloy,Silver Plating
Seal: Rubber
Rated Voltage: 800V DC/1500V DC

Electrical Performance
Rated Current: Max 40A/150A,Environmental Temperature70℃
Withstanding Voltage: 3000V 交流电
Insulation Resistance: > 200MΩ
Wire Gauge: 2.5-150m㎡

Mechanical Performance
Connection Type: Terminal Machine
Docking Times: >100
Shield: 360
Salt Spray: Max 96 H
Flammability Class: UL94 V-0
Number of Position: 2Pin / 3Pin / 4Pin / 5Pin / 6Pin

Environmental Performance
IP Rating: IP67 IP6K9K(mated)
Operating Temperature: -40℃~125℃

Application
PDU Batteries
Motor Motor Controller



Weight 56 g
Connector Type

Plug

Number of Positions

6 Pin

Body Material

Plastic

Current Rating

40A

Terminal

6mm

Orientation

Straight
