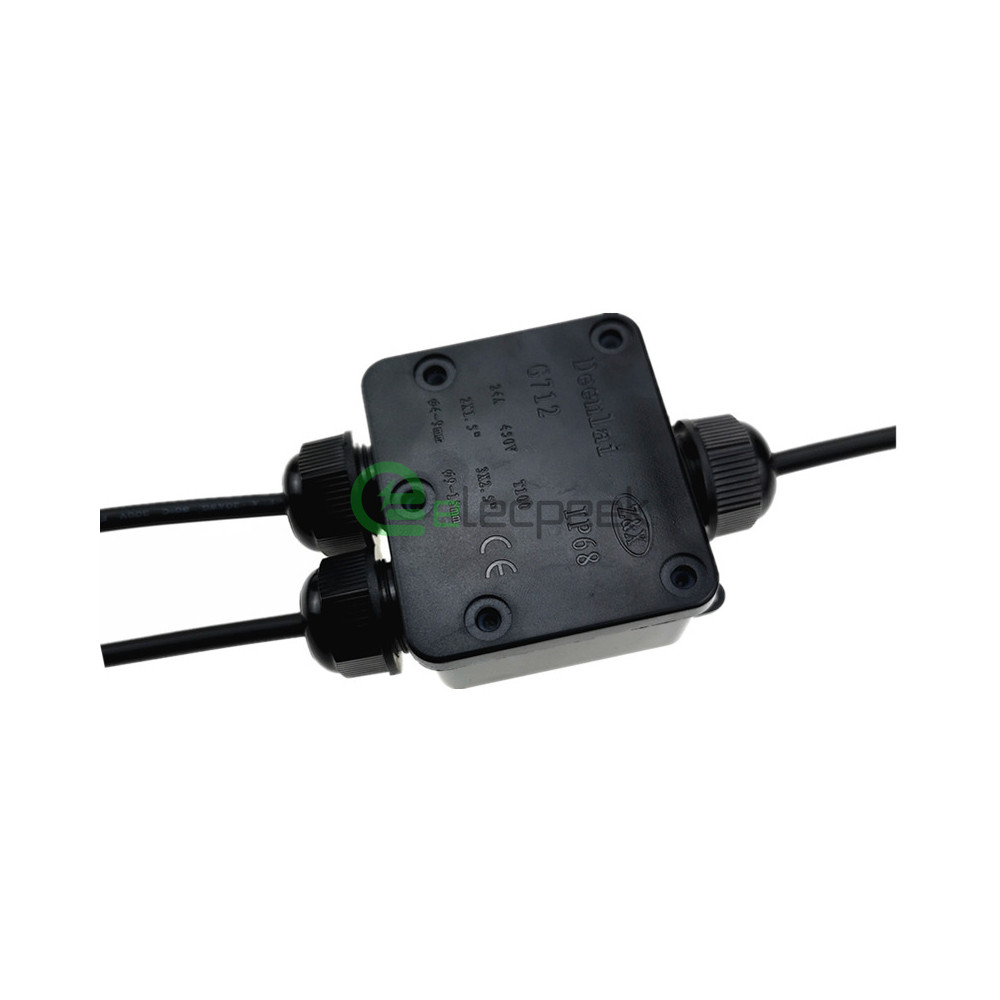

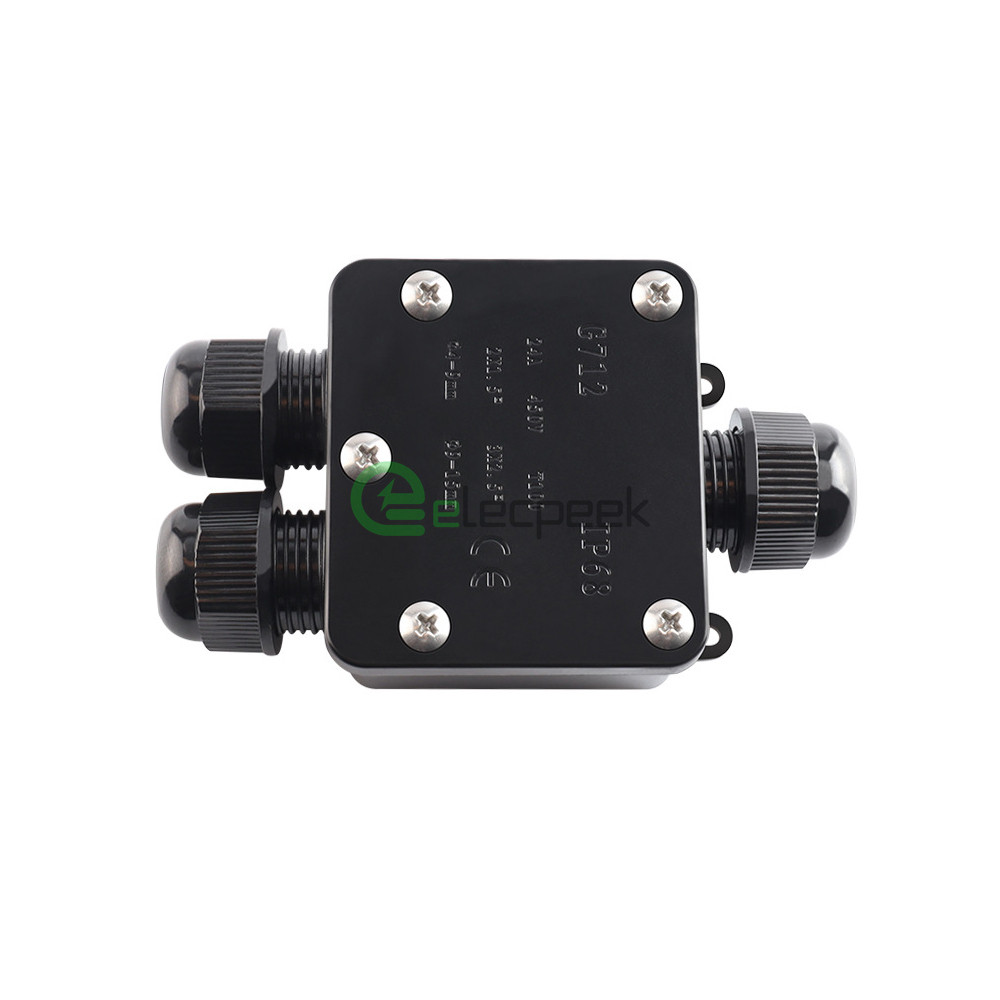

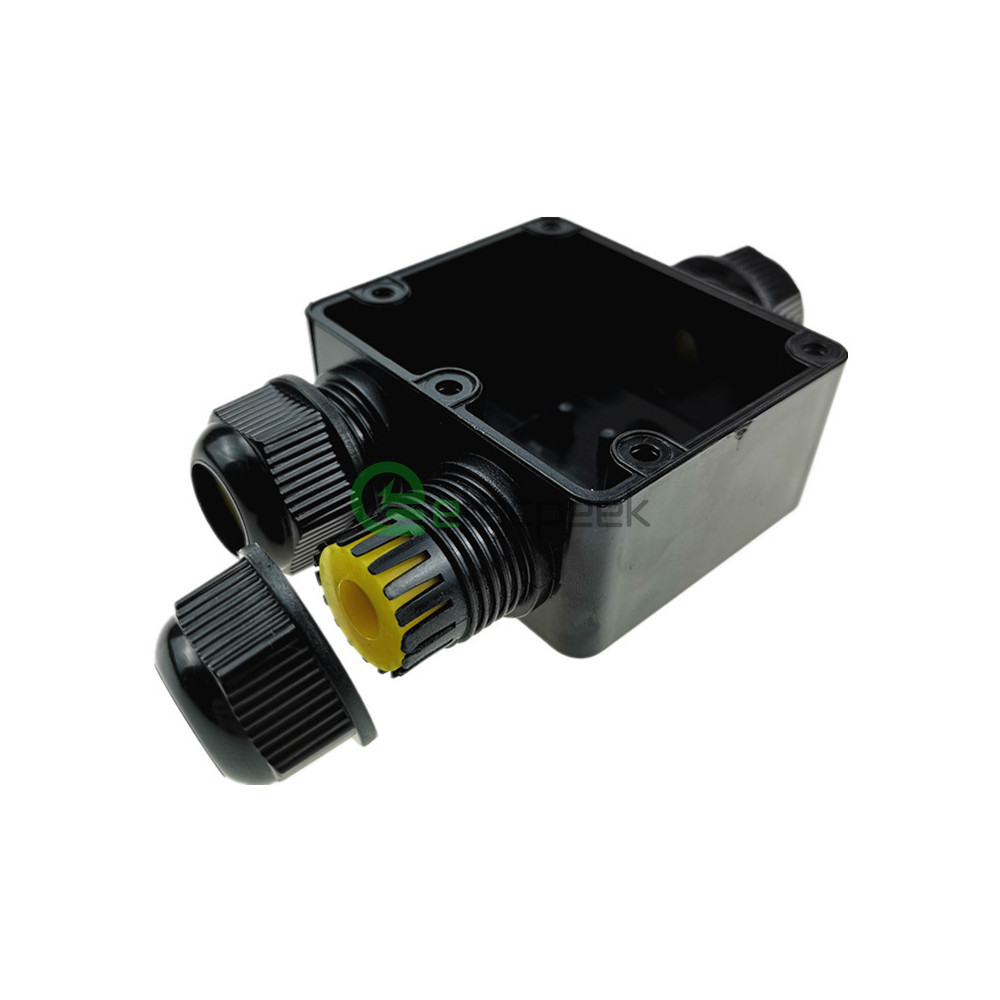

IP68 Underground Cable Connector Electrical Junction Box For Outdoor Use

SKU: RHT-24A-IP68-G712

  • Large range cable clamping
  • High reliability High safety
  • Widely Used in verious Application
  • Time-saving and convenient assembly

Get a Quotation

Definition

A cable gland (more often known in the U.S. as a cord grip, cable strain relief, cable connector or cable fitting) is a device designed to attach and secure the end of an electrical cable to the equipment.

A cable gland provides strain-relief and connects by a means suitable for the type and description of cable for which it is designed—including provision for making electrical connection to the armour or braid and lead or aluminium sheath of the cable, if any. Cable glands may also be used for sealing cables passing through bulkheads or gland plates. They are mostly used for cables with diameters between 1 mm and 75 mm.

Cable glands are commonly defined as mechanical cable entry devices. They are used throughout a number of industries in conjunction with cable and wiring used in electrical instrumentation and automation systems. Cable glands may be used on all types of electrical power, control, instrumentation, data and telecommunications cables. They are used as a sealing and termination device to ensure that the characteristics of the enclosure which the cable enters can be maintained adequately.

Application

Cable glands are made of various plastics, and steel, brass or aluminum for industrial usage. Glands intended to resist dripping water or water pressure will include synthetic rubber or other types of elastomer seals. Certain types of cable glands may also serve to prevent entry of flammable gas into equipment enclosures, for electrical equipment in hazardous areas.

Electrical
Rated Current

24A

Rated Voltage

450V

Electrical
Rated Current

24A

Rated Voltage

450V

Specifications
Material

PA66

Wire Gauge

4mm²-15mm²

Specifications
Material

PA66

Wire Gauge

4mm²-15mm²

Environmental
Ingress Protection

IP68

Operating Temperature

-20℃~80℃

Storage temperature

– 40℃~105℃

Environmental
Ingress Protection

IP68

Operating Temperature

-20℃~80℃

Storage temperature

– 40℃~105℃

Rated Current

24A

Rated Voltage

450V

Material

PA66

Ingress Protection

IP68

Operating Temperature

-20℃~80℃

Storage temperature

– 40℃~105℃

Wire Gauge

4mm²-15mm²
