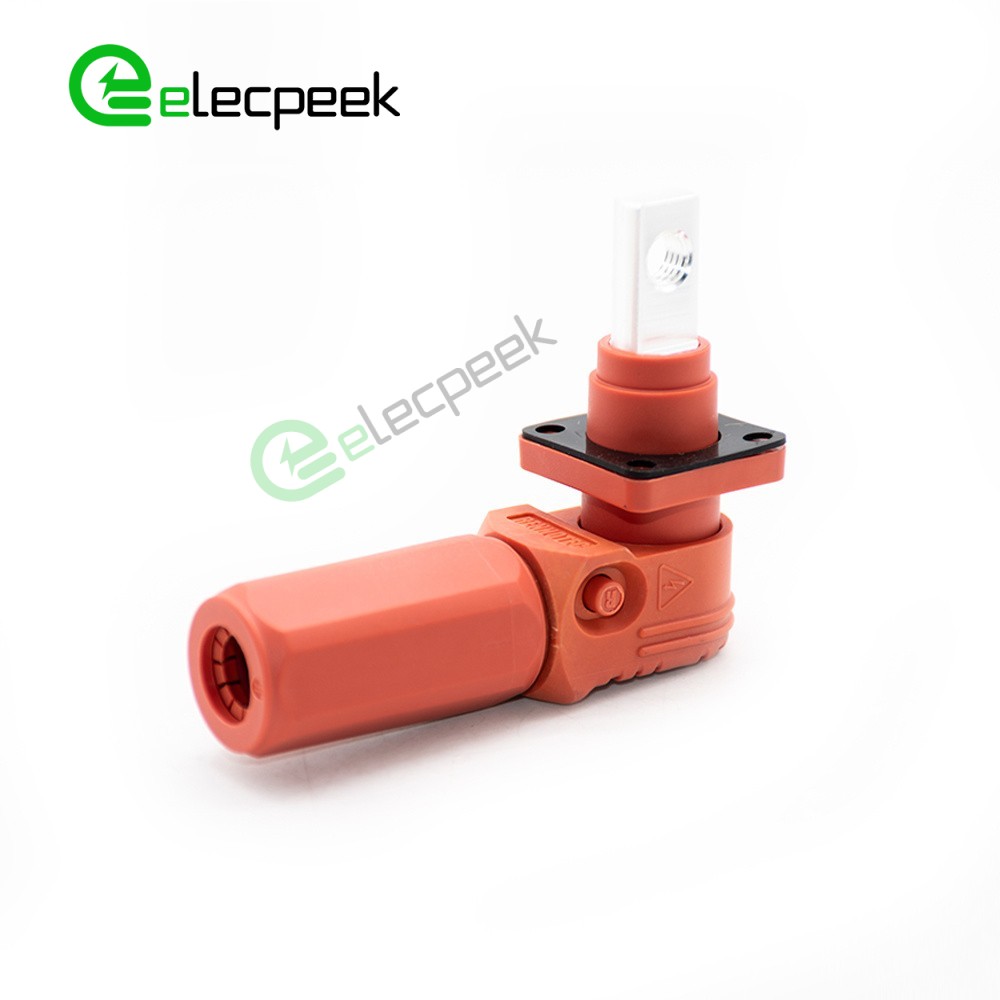

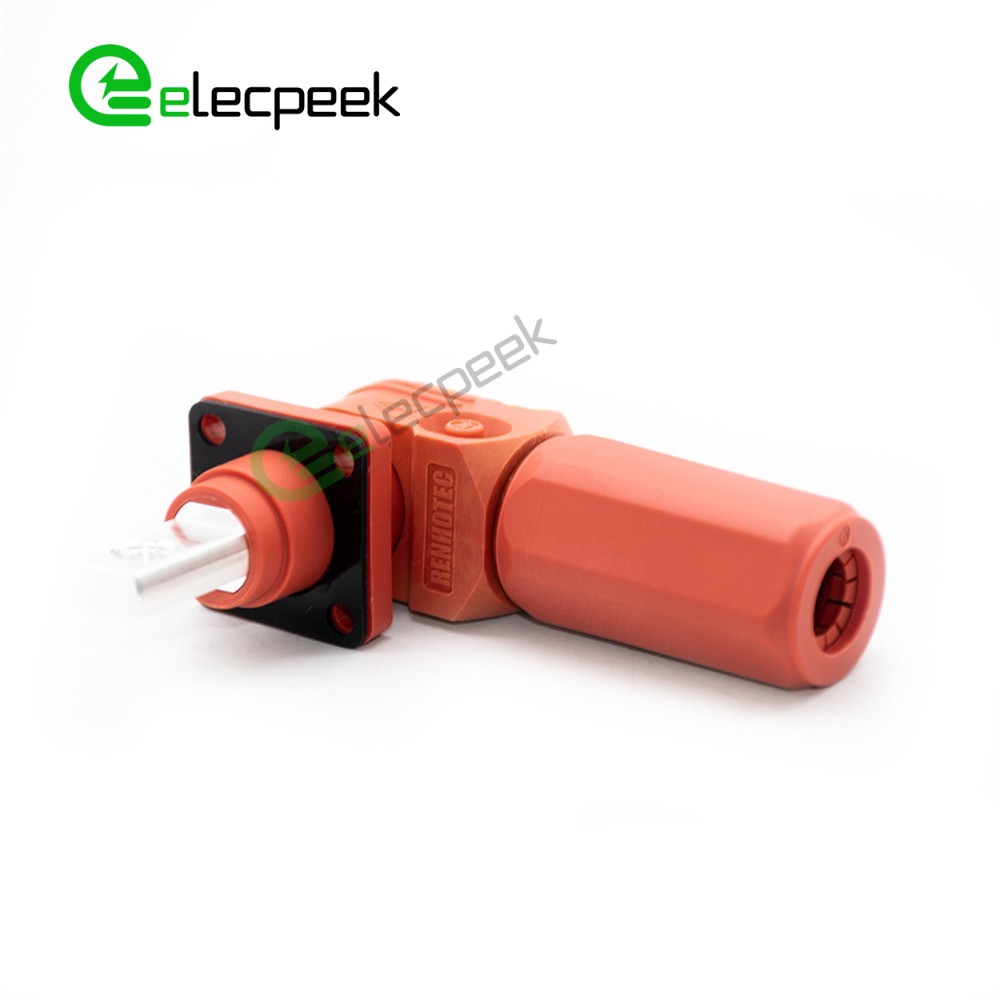

Male Plug Battery Connector for Electric Energy Storage

  • Touch Proof .
  • 360°rotating Plug.
  • Compact Robust Design.
  • Various Termination Options.
  • Three Color Are Available.
  • Quick Lock And Press-to- Release Design.
Get a Quotation

1. Enhanced efficiency

★Designed to improve energy transfer and battery storage capabilities,
★Maximizing overall system performance.
★Featuring a quick lock and press-to-release design
★Ensuring a reliable and secure connection.

2. Compact and versatile

★Available in 6mm/8mm/12mm size
★Offering a space-saving solution for various applications
★Allowing for easy integration into existing systems.

3. Premium quality materials

★Crafted from high-quality materials,
★Engineered to withstand demanding environments and ensure long-lasting durability
★Robust construction guarantees reliable and efficient power transmission.

4. Wide range of applications

★Suitable for energy storage systems and other power-related applications
★Efficiently connects batteries and ensures seamless power transfer.
★A versatile solution for industries such as electric vehicles, renewable energy, and industrial equipment.

Specifications

Connector Type

Plug

Orientations

90℃ Right Angle

Terminal Diameter

12mm

Mounting Type

Cable Mount

Wire Gauge

70mm²

Shell Material

Nylon

Contact Material

T2

Contact Finish

Silver Plating

Shielding

Unshield

Color

Red

Connector Type

Plug

Orientations

90℃ Right Angle

Terminal Diameter

12mm

Mounting Type

Cable Mount

Wire Gauge

70mm²

Shell Material

Nylon

Contact Material

T2

Contact Finish

Silver Plating

Shielding

Unshield

Color

Red

Electrical

Rated Voltage

1000V

Rated Current

250A

Rated Voltage

1000V

Rated Current

250A

Environmental

IP Rating

IP54

Operating Temperature

-40°C-125°C

IP Rating

IP54

Operating Temperature

-40°C-125°C

Weight 98 g
Connector Type

Plug

Orientations

90℃ Right Angle

Terminal Diameter

12mm

Rated Voltage

1000V

Rated Current

250A

Mounting Type

Cable Mount

Wire Gauge

70mm²

Shell Material

Nylon

Contact Material

T2

Contact Finish

Silver Plating

Shielding

Unshield

IP Rating

IP54

Color

Red

Operating Temperature

-40°C-125°C

Q1: How does the Battery Storage Connector eliminate the need for field wiring?

A: The Battery Storage Connector features a drawer-style slide-in connection, which removes the requirement for field wiring. This innovative design allows for easy and hassle-free installation, saving time and effort.

Q2: Can the modular connection system of the Battery Storage Connector be adjusted to meet specific power distribution requirements?

A: Absolutely! The modular connection system of the Battery Storage Connector can be easily scaled to accommodate various power distribution needs. This flexibility eliminates the limitations of traditional wiring systems, providing optimal power distribution solutions for different applications.

Q3: Is the Battery Storage Connector suitable for high-power applications?

A: Yes, the Battery Storage Connector is designed to handle higher power distribution requirements. Its advanced modular connection system allows for seamless power transmission, ensuring efficient and reliable performance even in demanding applications.

Q4: What are the advantages of using the Battery Storage Connector over traditional wiring methods?

A: The Battery Storage Connector offers several advantages over traditional wiring methods. Firstly, its slide-in connection eliminates the need for complex field wiring, simplifying installation and reducing costs. Additionally, the modular nature of this connector allows for scalability and customization, providing a more efficient and adaptable power distribution solution.
