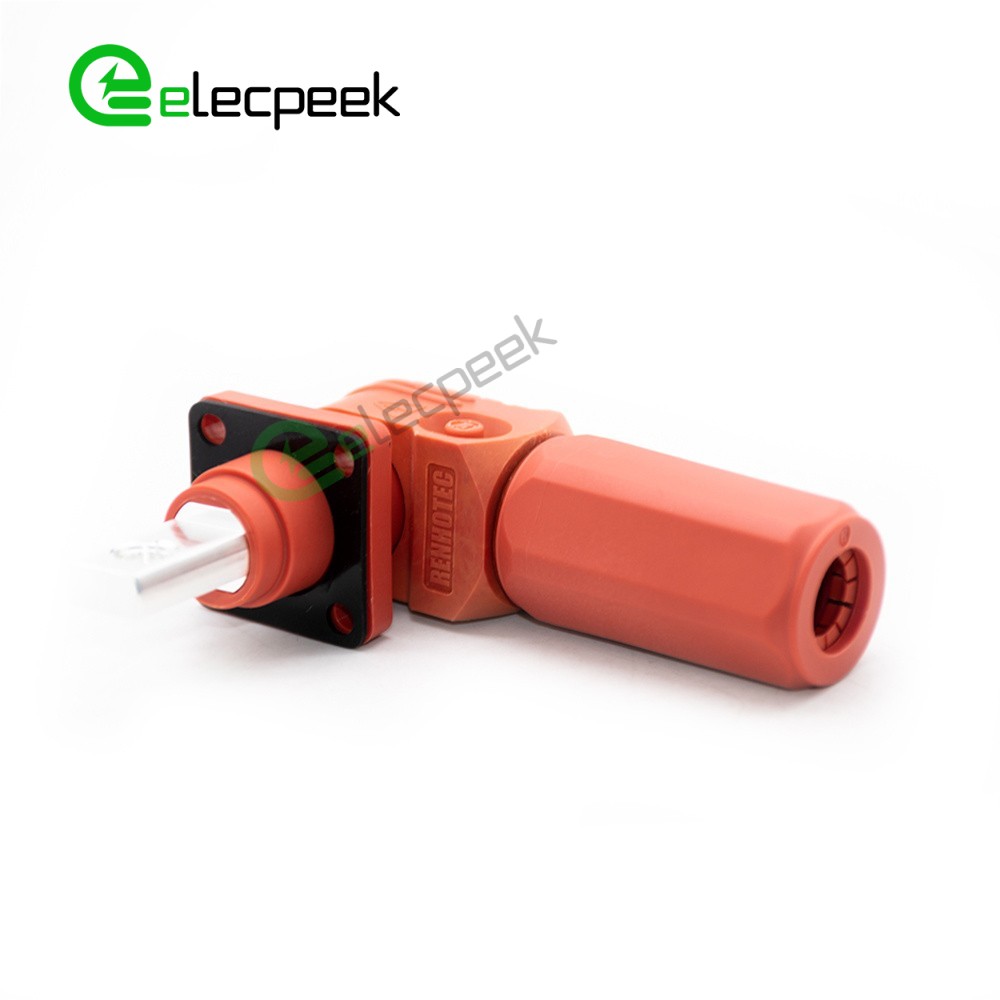

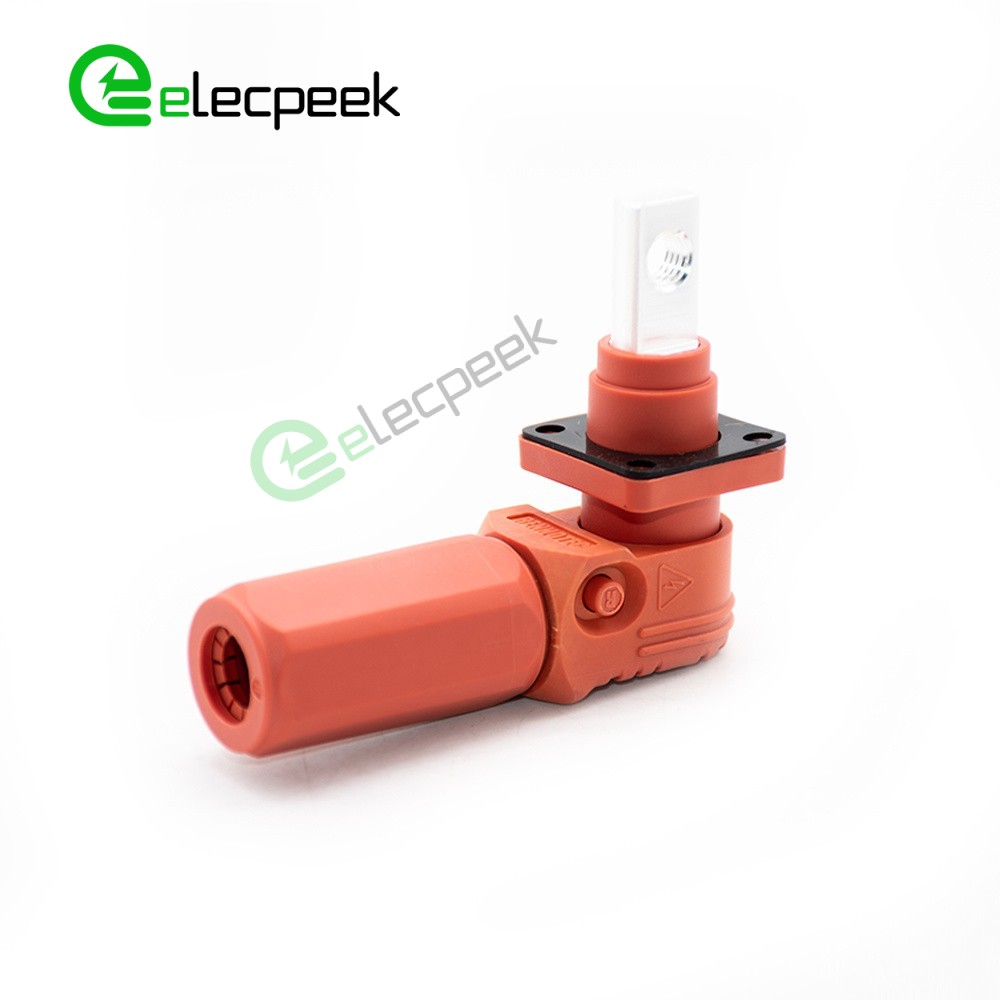

Single Core Terminal PV Energy Storage Connector

  • Touch Proof .
  • 360°rotating Plug.
  • Compact Robust Design.
  • Various Termination Options.
  • Three Color Are Available.
  • Quick Lock And Press-to- Release Design.

Get a Quotation



1. Enhanced efficiency

★Designed to improve energy transfer and battery storage capabilities,
★Maximizing overall system performance.
★Featuring a quick lock and press-to-release design
★Ensuring a reliable and secure connection.

2. Compact and versatile

★Available in 6mm/8mm/12mm size
★Offering a space-saving solution for various applications
★Allowing for easy integration into existing systems.

3. Premium quality materials

★Crafted from high-quality materials,
★Engineered to withstand demanding environments and ensure long-lasting durability
★Robust construction guarantees reliable and efficient power transmission.

4. Wide range of applications

★Suitable for energy storage systems and other power-related applications
★Efficiently connects batteries and ensures seamless power transfer.
★A versatile solution for industries such as electric vehicles, renewable energy, and industrial equipment.

Specifications

Connector Type

Plug

Orientations

90℃ Right Angle

Terminal Diameter

12mm

Mounting Type

Cable Mount

Wire Gauge

95mm²

Shell Material

Nylon

Contact Material

T2

Contact Plating

Silver Plating

Shielding

Unshield

Connector Type

Plug

Orientations

90℃ Right Angle

Terminal Diameter

12mm

Mounting Type

Cable Mount

Wire Gauge

95mm²

Shell Material

Nylon

Contact Material

T2

Contact Plating

Silver Plating

Shielding

Unshield

Electrical

Rated Voltage

1000V

Rated Current

350A

Rated Voltage

1000V

Rated Current

350A

Environmental

Ip Rating

IP54

Operating Temperature

-40°C-125°C

Ip Rating

IP54

Operating Temperature

-40°C-125°C

Color

Red

Color

Red

Weight 72 g
Connector Type

Plug

Orientations

90℃ Right Angle

Terminal Diameter

12mm

Rated Voltage

1000V

Rated Current

350A

Mounting Type

Cable Mount

Wire Gauge

95mm²

Shell Material

Nylon

Contact Material

T2

Contact Plating

Silver Plating

Shielding

Unshield

Ip Rating

IP54

Color

Red

Operating Temperature

-40°C-125°C

Question 1:
What are the technical specifications that this Battery Storage Connector meets?

The Battery Storage Connector is designed to meet various technical specifications, including plugging force, insulation resistance, dielectric strength, and temperature rise. These specifications ensure optimal performance and safety in professional CAE simulations.

Question 2:
How does using these connectors enhance worker safety during ESS installation?

The Battery Storage Connector improves worker safety during the installation of energy storage systems (ESS) by securely linking battery modules in series. This eliminates the risk of loose connections or exposed wires, reducing the chances of accidents or electrical hazards.

Question 3:
What industries can benefit from using these energy storage connectors?

The Battery Storage Connector is suitable for various industries that utilize energy storage systems, such as automotive, renewable energy, telecommunications, and aerospace. These connectors offer a reliable and robust solution for safely connecting battery modules in a series, ensuring efficient and secure energy storage across diverse applications.

Question 4:
Are these connectors suitable for professional CAE simulations?

Yes, these Battery Storage Connectors are specially designed for professional CAE simulations. They are engineered to meet the specific technical requirements of CAE simulations, including precise plugging force, superior insulation resistance, high dielectric strength, and low temperature rise. This makes them ideal for CAE professionals seeking reliable and high-performance connectors for their simulations.
