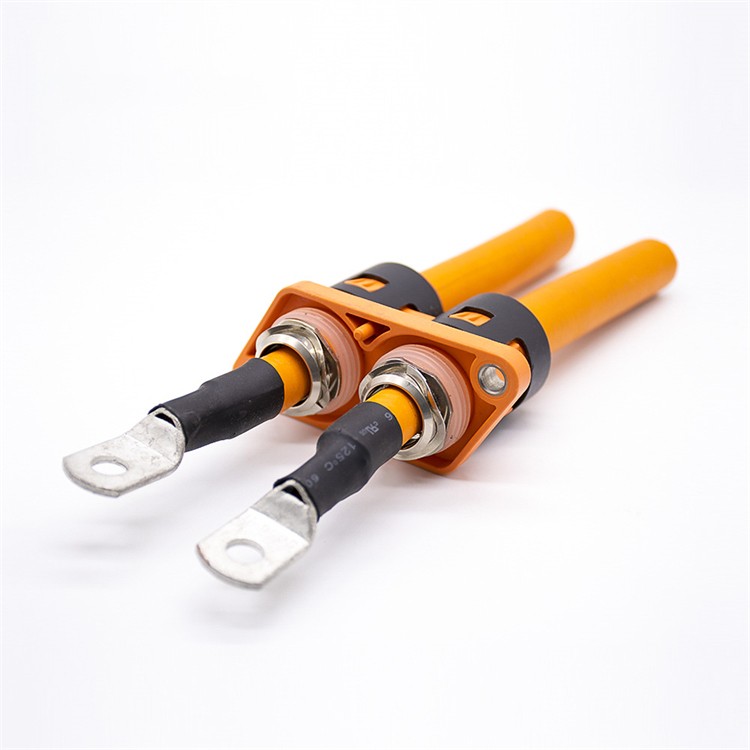

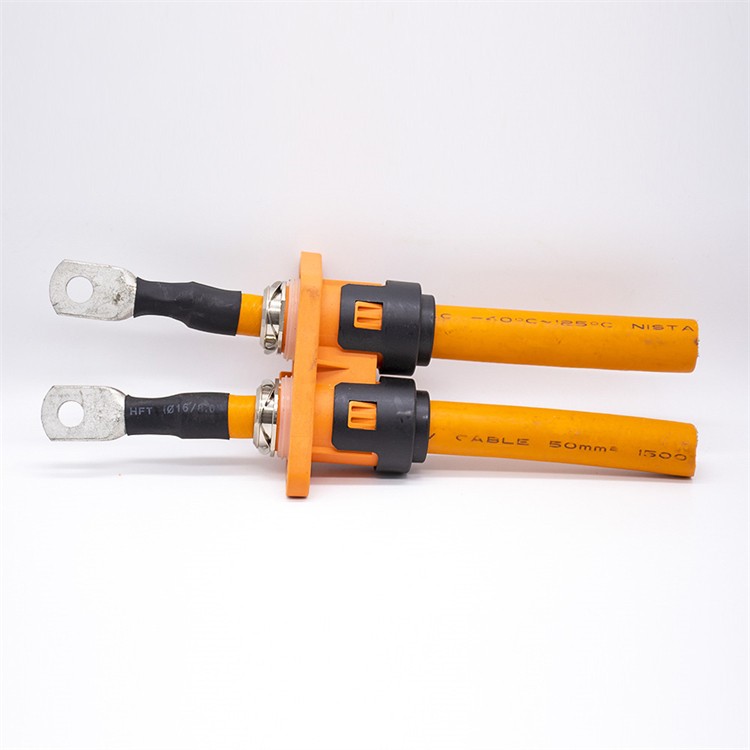

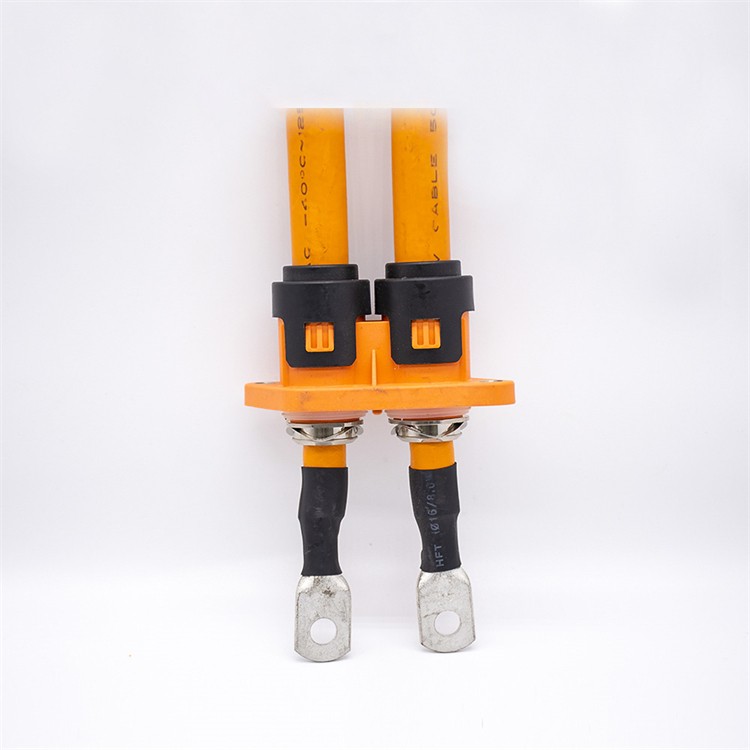

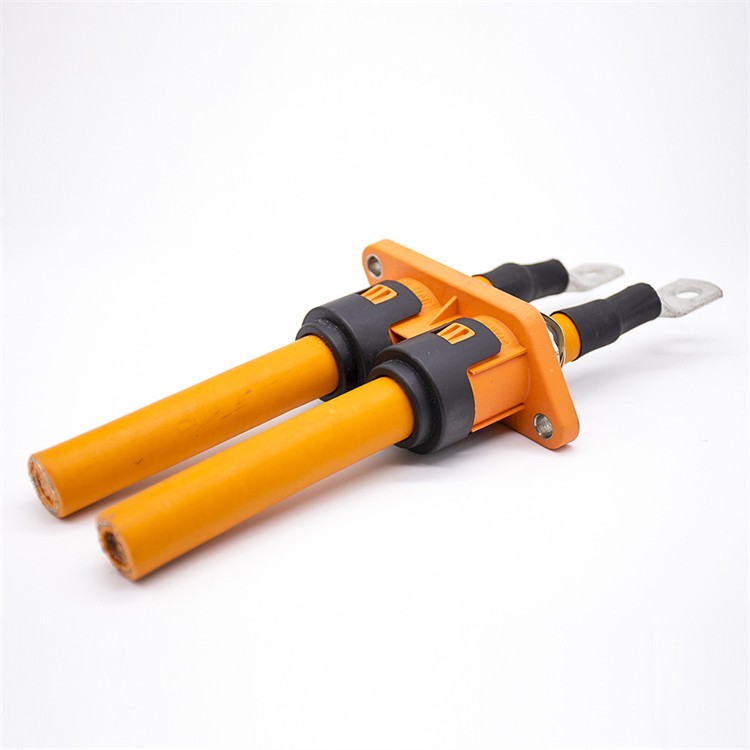

150A Connector High Voltage PT Connector 2 Pin Panel Mount For EV Cable 35mm²

  • Light In Weight With Plastic Shell.
  • Way To Install: front Install / Behind Install.
  • Easy To Install, Reliable Connection.
  • 360° Shielded From Wire To Device Economical.
  • Excellent Electrical Insulation.
  • Secondary Buckle.
  • 1 To 3 Positions Available.
  • Three current options are available: 125A/150A/200A.
  • Wire Range: 25 To 50 mm² Shielded Wires.

Get a Quotation


The HVPT Connector, commonly referred to as the cable connector, serves as an integral part of electric vehicle power distribution systems, electric motors, and motor controllers, among other essential components. It is primarily designed to work in harmony with cables, providing both water resistance and electromagnetic shielding to ensure the longevity and reliability of the electric systems it supports. These connectors come in versatile models featuring 1, 2, or 3-pin specifications. Depending on the specific application, there are optional cable sizes of 25mm², 35mm², and 50mm², allowing for a range of power distribution needs.

Expanding on this, the Elecpeek  High Voltage Internal Lock Connector is an affordable yet dependable solution for high-voltage connections. These connectors boast an impressive IP67 rating, indicating that they are fully protected against dust ingress and can withstand immersion in water up to 1 meter for 30 minutes. Despite this robust protection, they maintain a lightweight design that doesn’t compromise the overall efficiency of the system. Capable of handling up to 1000V DC, they are available in configurations ranging from 1 to 3 positions, offering versatility in various installation scenarios.

The Elecpeek HVPT Connectors have been thoughtfully designed to adhere to AK standards, making them suitable for an array of xEV applications. This includes both power interconnect solutions, where the distribution of electric power is paramount, and signal interconnect solutions, which focus on transferring data between different components of a system. Elecpeek’s offerings are particularly beneficial for applications that demand high-performance and enhanced safety, highlighting their commitment to providing robust, reliable, and advanced connectivity solutions.

2 Pin HVPT Connector Technical Parameters

Product Type
Orientation: Straight
Number Of Positions : 2 Pin
Wire Gauge: 25mm², 35mm², 50mm²
Contact Termination: Crimp
Mounting Type: Cable Mount
Mounting Feature: Flange
Key: N
Shell Material: PA66+GF
Shielding: Shield
Color: Orange
Rated Current: 125A, 150A, 200A
Rated Voltage: 800V
Operating Temperature : -40℃~125℃
Standards and Specifications
Ingress Protection: IP67
Flammability: UL94 V-0

Weight 100 g
Number of Positions

2 Pin
