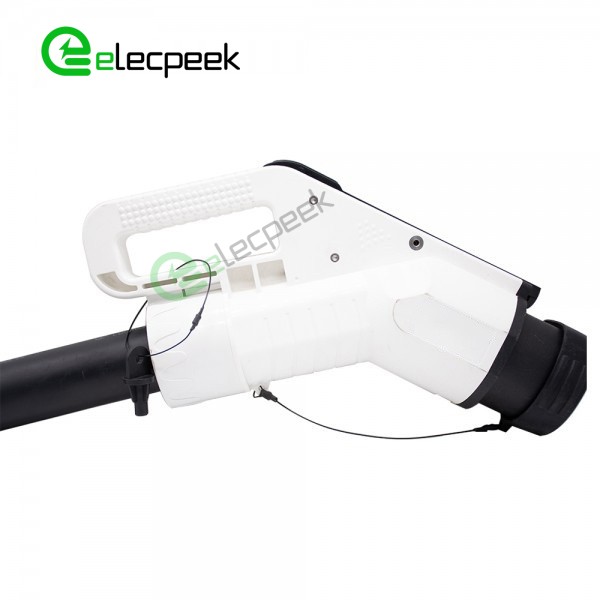

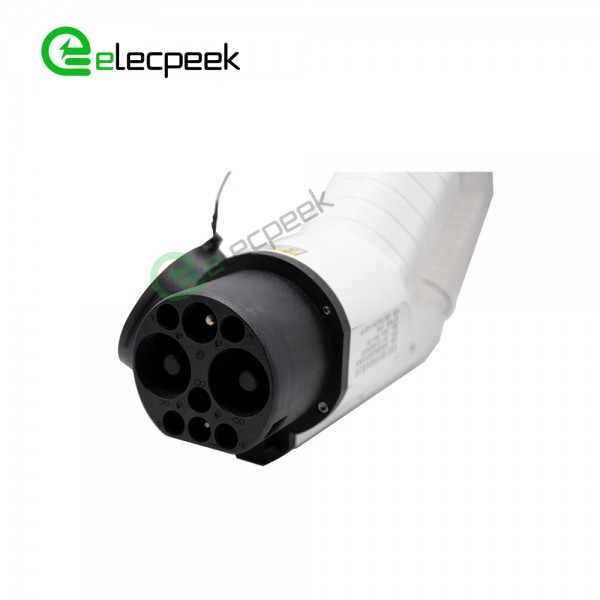

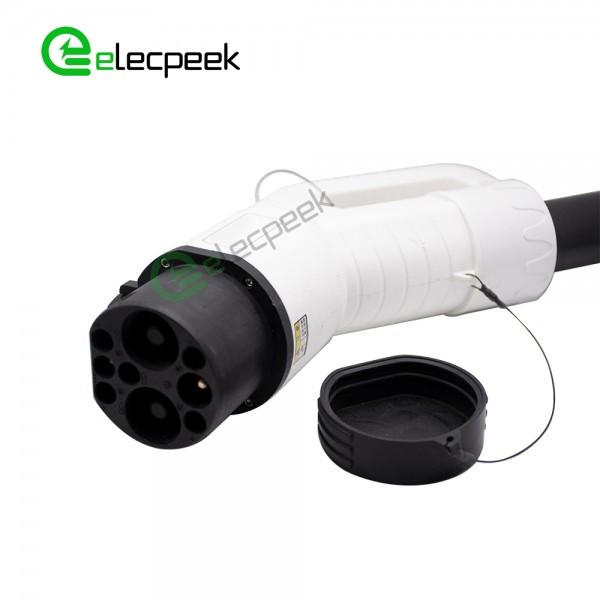

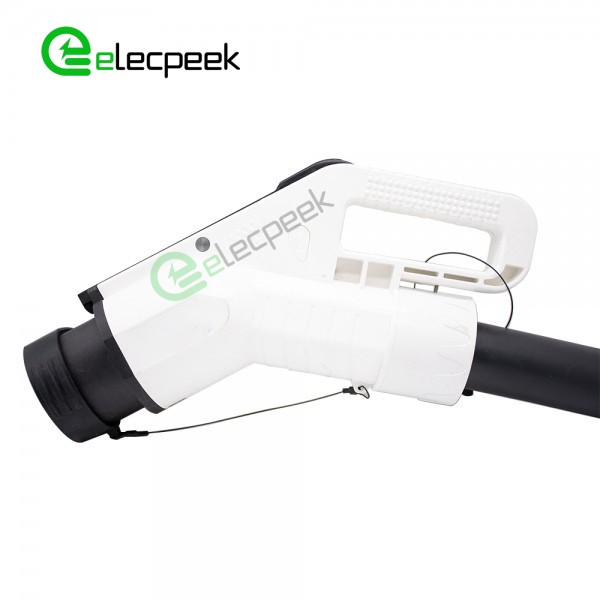

Vehicle End GB Standards DC Charging Connector Plug Single-phase 125A 750V

  • Copper Alloy Silver Plated.
  • High Durability, Corrosion Resistance, Oxidation Resistance.
  • Strong Waterproof Performance.
  • Can Afford 1m Drop and 2t Vehicle Run over Pressure.
  • Nice Appearance, Hand-held Ergonomic Design, Easy Plug.

Get a Quotation



Renhotec is a manufacturer specializing in ev charging products. Additionally to the production, our company has design and r&d departments. Our main products are ev charging stations, ev cables and ev connectors. Along with the regular products we also offer product customization service upon the request in order to meet the local market preferences and needs.

GB Standards DC Charging Connector

Material:
Case Material: Thermoplastic , Flame Retardant Grade Ul94 V-0
Pin: Copper Alloy , Silver + Thermoplastic on the Top
Electrical Performance
Rated Current: (DC)80A/125A/200A /250A
Operation Voltage: 750V
Insulation Resistance: >2000MΩ(DC1000V)
Terminal Temperature: <50K
Withstand Voltage: 5000V
Contact Resistance: 0.5MΩ MAX
Mechanical Performance
Mechanical Life: No-load Plug in / Pull Out>10000 Times
Coupled Insertion Force: >45N<80N
Environmental Performance
Temperature Range: – 30℃~ +50℃
Protection Degree: IP65
Application
Professional Charging Station Berth
Parking Lots Parking Spaces Residential Parking Lot



Weight 138 g
Connector Type

Plug

Rated Type

DC

Current Rating

125A

Power Phase

Single Phase

Charging Standards

GB/T 20234.2-2015
