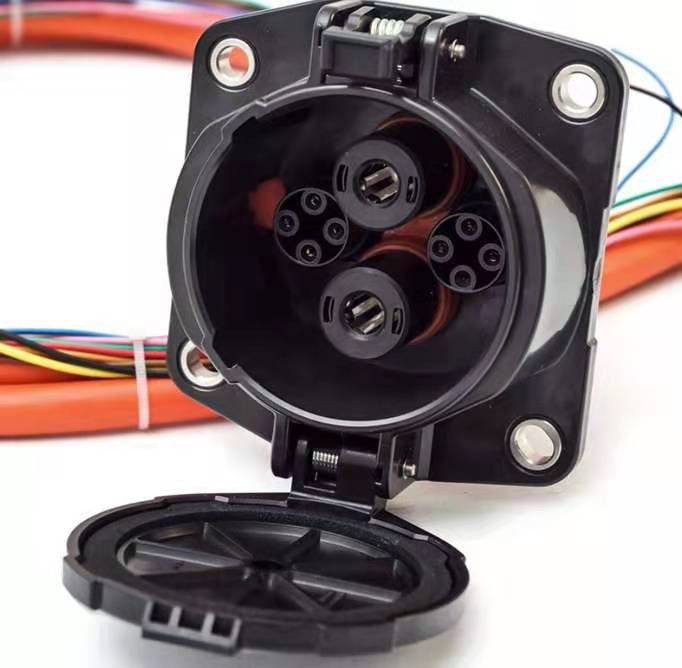

1000V Receptacle EV Connector Single-phase CHAdeMO DC Fast Charging 125A with 5 Meters Cable

SKU: RHT-CHA-EV125S Tags:

  • Copper Alloy Silver Plated.
  • High Durability, Corrosion Resistance, Oxidation Resistance.
  • Strong Waterproof Performance.
  • Can Afford 1m Drop and 2t Vehicle Run over Pressure.
  • Nice Appearance, Hand-held Ergonomic Design, Easy Plug.

Get a Quotation


    Renhotec is a manufacturer specializing in ev charging products. Additionally to the production, our company has design and r&d departments. Our main products are ev charging stations, ev cables and ev connectors. Along with the regular products we also offer product customization service upon the request in order to meet the local market preferences and needs.

    CHAdeMO Standards DC Charging Connector

    Material：
    Case Material: Thermoplastic , Flame Retardant Grade Ul94 V-0
    Pin: Copper Alloy , Silver + Thermoplastic on the Top
    Electrical Performance
    Rated Current: (DC)200A MAX
    Operation Voltage: 1000V DC
    Insulation Resistance: ＞2000MΩ(DC1000V)
    Terminal Temperature: ＜50K
    Withstand Voltage: 3200V
    Contact Resistance: 0.5MΩ MAX
    Mechanical Performance
    Mechanical Life: No-load Plug in / Pull Out＞10000 Times
    Coupled Insertion Force: ＞45N＜80N
    Environmental Performance
    Temperature Range: – 30℃~ +50℃
    Protection Degree: IP65
    Application
    Professional Charging Station Berth
    Parking Lots Parking Spaces Residential Parking Lot



    Weight 131 g
    Connector Type

    Socket
    Rated Type

    DC
    Current Rating

    125A
    Power Phase

    Single Phase
    Charging Standards

    CHAdeMO
    Application

    Vehicle End
