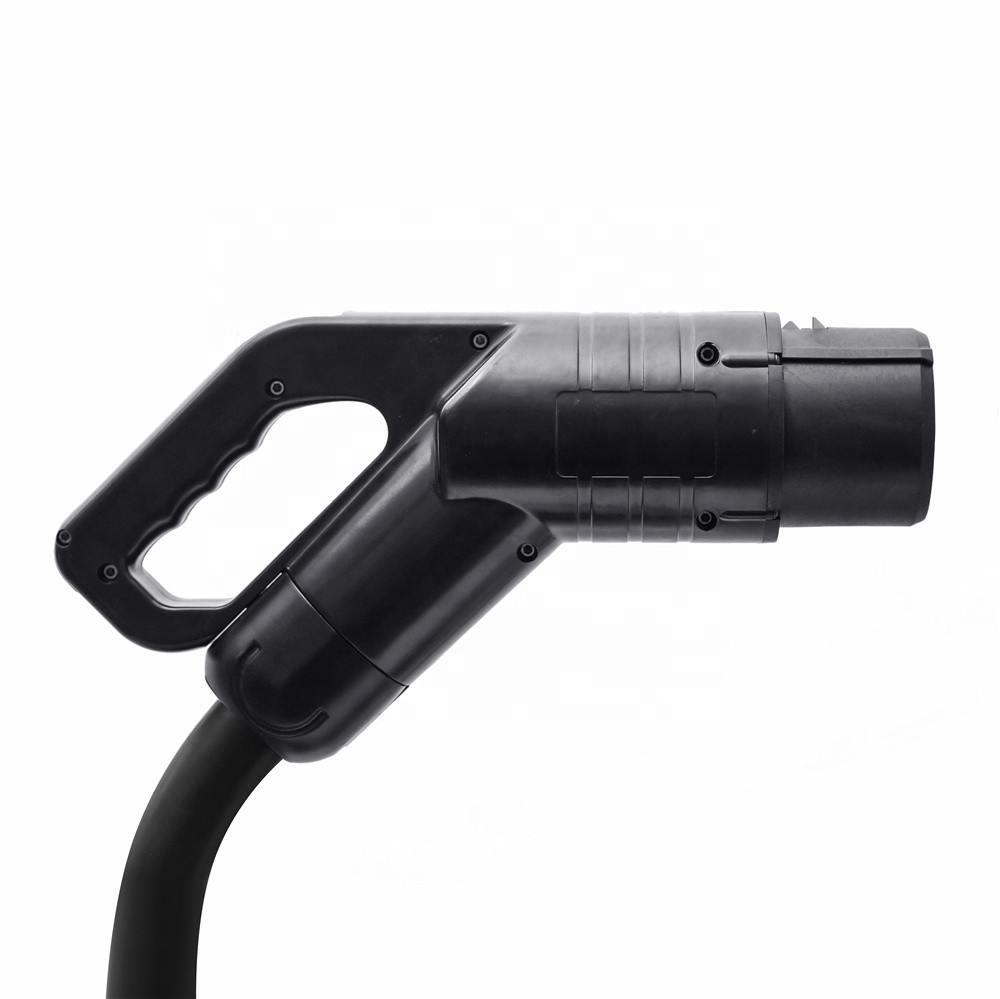

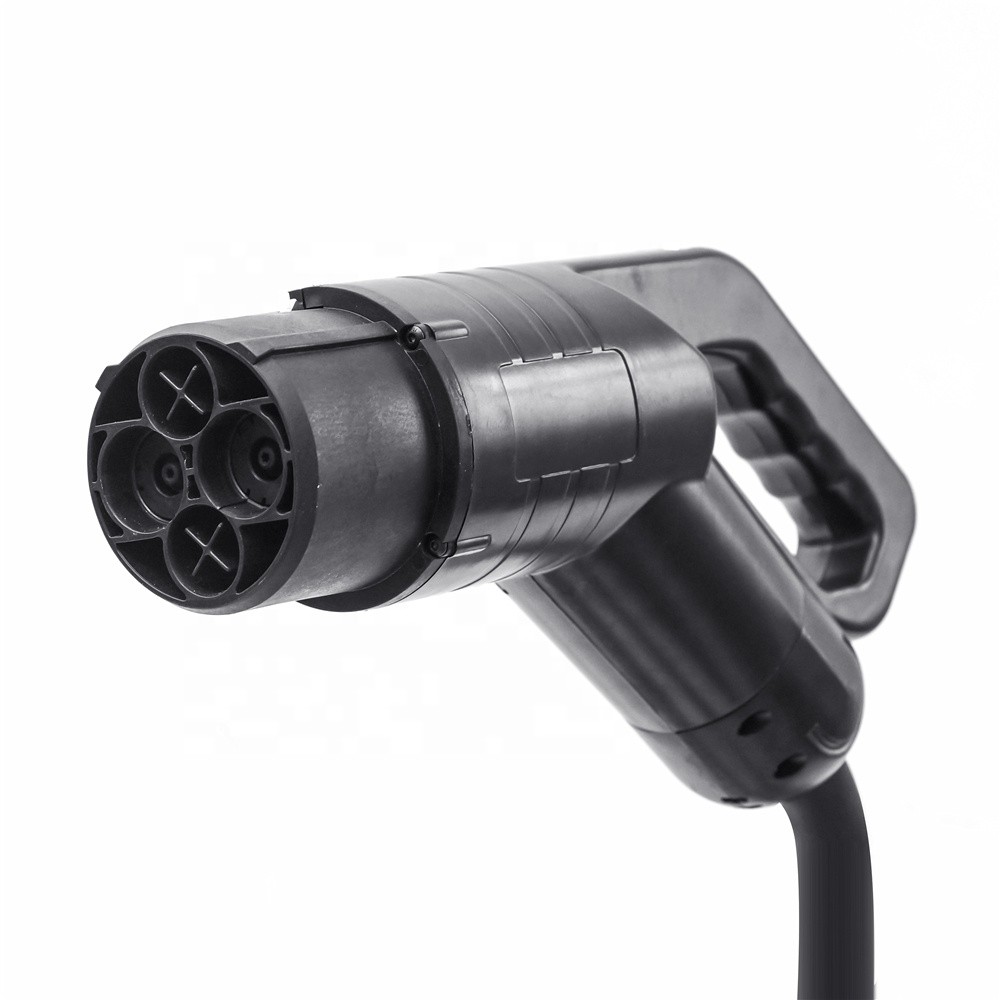

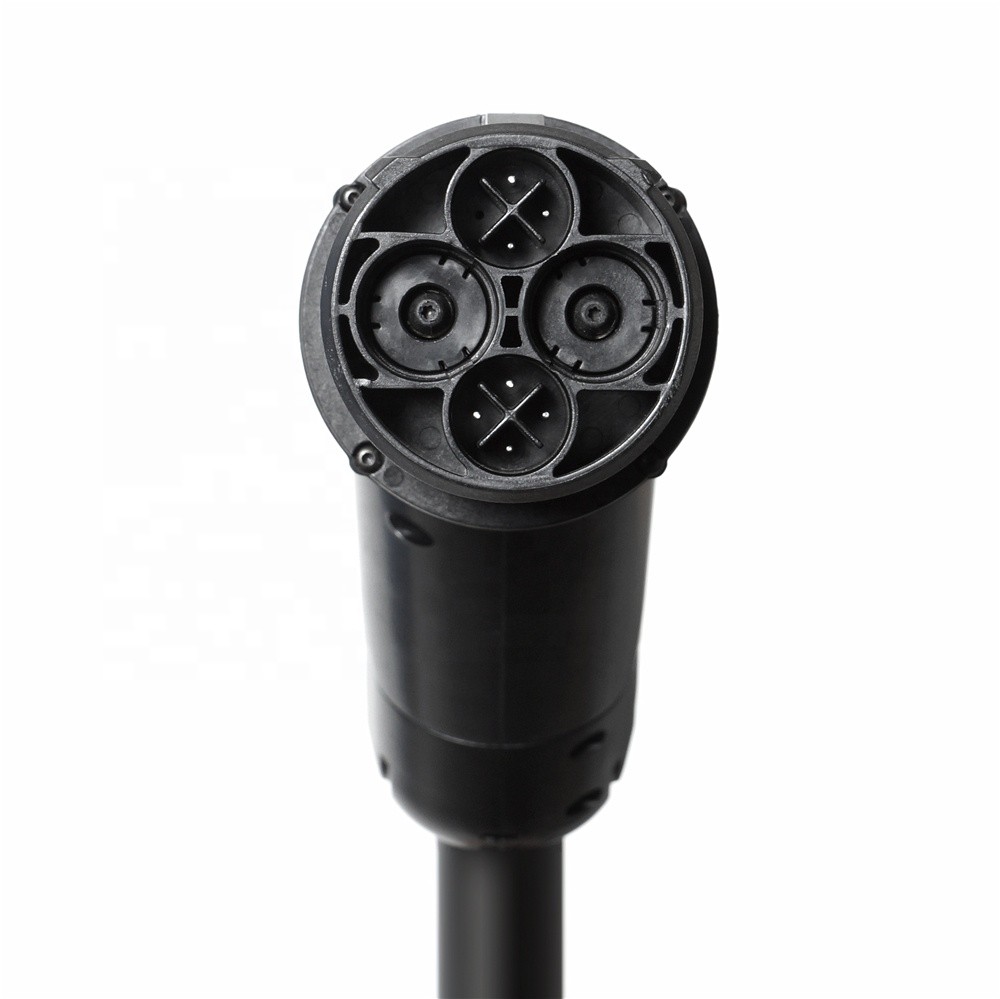

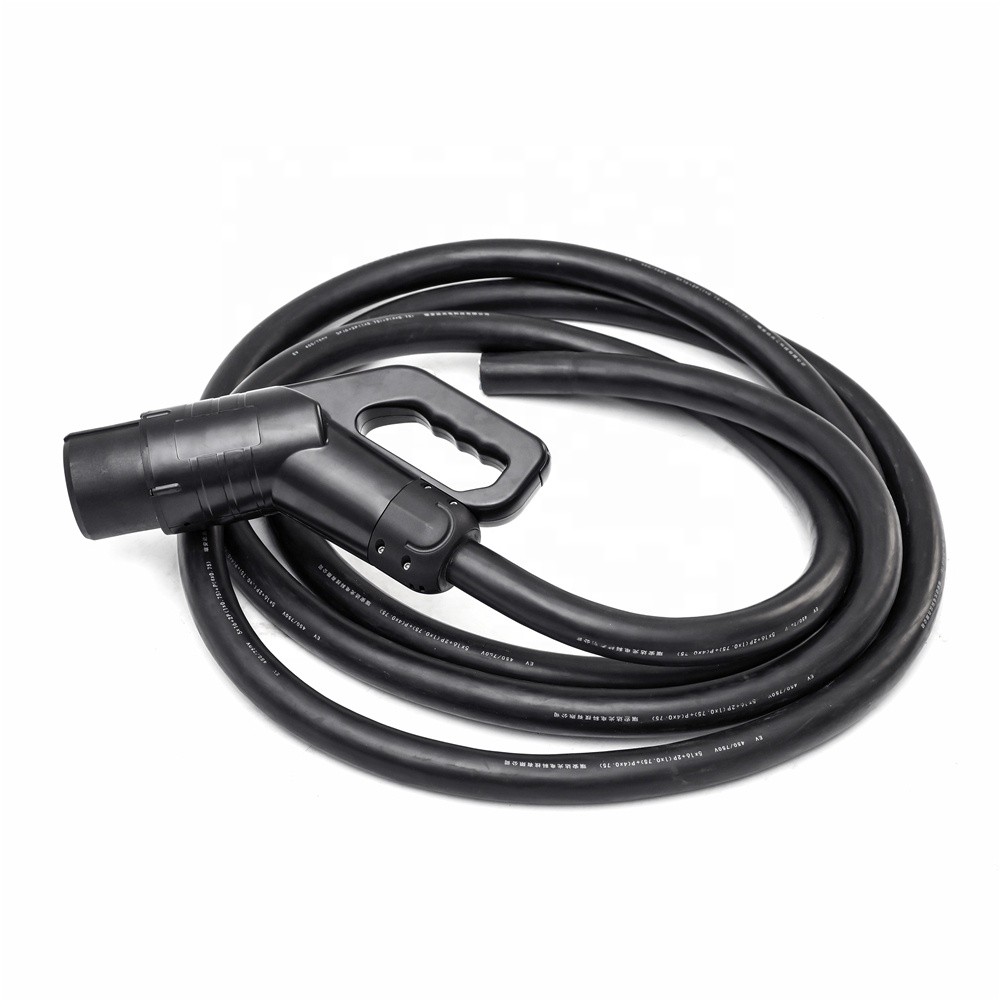

125A 1000V EV Plug Single-phase CHAdeMO Standard DC Fast Charging Connector with 5 Meters Cable

SKU: RHT-CHA-EV125P Tags:

  • Copper Alloy Silver Plated.
  • High Durability, Corrosion Resistance, Oxidation Resistance.
  • Strong Waterproof Performance.
  • Can Afford 1m Drop and 2t Vehicle Run over Pressure.
  • Nice Appearance, Hand-held Ergonomic Design, Easy Plug.

Get a Quotation

Renhotec is a manufacturer specializing in ev charging products. Additionally to the production, our company has design and r&d departments. Our main products are ev charging stations, ev cables and ev connectors. Along with the regular products we also offer product customization service upon the request in order to meet the local market preferences and needs.

CHAdeMO Standards DC Charging Connector

Material:
Case Material: Thermoplastic , Flame Retardant Grade Ul94 V-0
Pin: Copper Alloy , Silver + Thermoplastic on the Top
Electrical Performance
Rated Current: (DC)200A MAX
Operation Voltage: 1000V DC
Insulation Resistance: >2000MΩ(DC1000V)
Terminal Temperature: <50K
Withstand Voltage: 3200V
Contact Resistance: 0.5MΩ MAX
Mechanical Performance
Mechanical Life: No-load Plug in / Pull Out>10000 Times
Coupled Insertion Force: >45N<80N
Environmental Performance
Temperature Range: – 30℃~ +50℃
Protection Degree: IP65
Application
Professional Charging Station Berth
Parking Lots Parking Spaces Residential Parking Lot



Weight 102 g
Connector Type

Plug

Rated Type

DC

Current Rating

125A

Power Phase

Single Phase

Charging Standards

CHAdeMO

Application

Vehicle End
