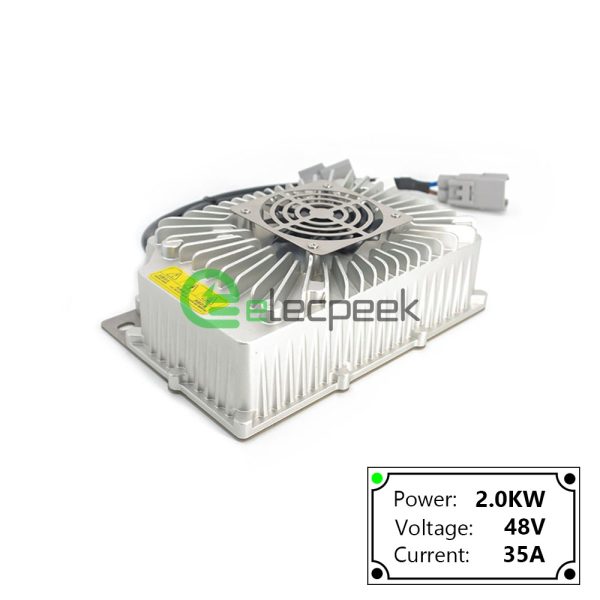

2.0KW 48V 35A Electric Vehicle On-board Charger for Fast Charging

SKU: RHT-OBC-2.0KW-48V35A

The RHT-OBC-2.0KW-48V35A is a 2.0KW 48V 35A Electric Vehicle On-board Charger designed for fast charging. It is an original factory product, offering high efficiency and reliable performance. This charger is compatible with various electric vehicles and features advanced safety protections.

Get a Quotation

?Inquiry Form for Bulk Order?

Please fill in your details and requirements below, and our team will get in touch with you as soon as possible.






    The 2.0KW car charger is a charging equipment specially designed for electric vehicles. It mounts directly inside the vehicle and allows owners to charge their electric vehicle battery pack using standard household power or public AC chargers.

    2.0KW On-board Charger Specification

    2.0KW On-board Charger
    Input Voltage 24V 60V 72V 108V 144V 360V
    Output voltage(V) 15-32V 20-80V 30-90V 50-130V 110-180V 200-440V
    Output current(A) 0-60A 0-35A 0-25A 0-18A 0-18A 0-6A
    Rated input Voltage 220VAC
    input voltage range 90-265VAC
    Rated Input Voltage Frequency 50Hz
    Input Frequency Range 45-65Hz
    Starting Impulse Current ≤10A
    Input Power Factor ≥0.99@220Vin,Pomax
    Output Rated Output Power 2.0KW
    Voltage Stabilization Accuracy ≤1%
    Ripple Coefficient of Voltage ≤1%
    Voltage Stabilization Accuracy ≤5%
    Output Response Time ≤5S

    2.0KW On-board Charger Series

    Plug and Socket Definition

    Image Plug Type Pin Instruction Wire Diameter
    Image Docking Plug
    Model:Nominated    		 1 Output Positive 4
    2 Output Negative 4
    Image Docking Plug
    Model:Nominated    		 1 CANH Reserve
    2 CANL Reserve
    3 12V_IN+ Reserve
    4 12V_IN- Reserve
    Image Docking Plug
    Model:Nominated    		 1 Input/L 2.5
    2 PE 2.5
    3 Input/N 2.5
    Image Docking Plug
    Model:Nominated    		 1 CC Reserve
    2 CP Reserve

    Output Plug Options

    Input Plug Options

    Successful Projects

    Project QTY: 500PCS
    Item: 6.6KW On-board Charger
    Location: Portland, United States

    Project QTY:1200PCS
    Item:20KW On-board Charger
    Location:Russelsheim,Germany



    Project QTY: 500PCS
    Item: 6.6KW On-board Charger
    Location: Portland, United States

    Project QTY: 500PCS
    Item: 6.6KW On-board Charger
    Location: Portland, United States

    Project QTY: 500PCS
    Item: 6.6KW On-board Charger
    Location: Portland, United States

    Project QTY: 500PCS
    Item: 6.6KW On-board Charger
    Location: Portland, United States

    Application

    On-board chargers are integral components of electric vehicles (EVs) and plug-in hybrid electric vehicles (PHEVs). They convert Alternating Current (AC) from the grid (or any other AC source) to Direct Current (DC) for charging the vehicle's battery. Electric boats and other marine vehicles also use on-board chargers. These chargers may need to be particularly robust to withstand the harsh marine environment.

    Electrical

    Rated Input Voltage

    220V
    Input voltage range

    90~265V
    Rated Input Frequency

    50Hz
    Input Frequency Range

    45~65Hz
    Starting Impulse Current

    ≤10A
    Input Power Factor

    ≥0.99@220Vin, Pomax
    Rated Output Power

    2KW
    Typical Efficiency

    ≥93%
    Ripple Coefficient

    ≤1%
    Current Stabilization

    ≤5%
    Output Response

    ≤5s
    Humidity

    5%~95%
    IP Grade

    IP67
    Cooling Type

    Air Cooling
    Communication

    CAN Bus
    Rated Input Voltage

    220V

    		 Input voltage range

    90~265V
    Rated Input Frequency

    50Hz

    		 Input Frequency Range

    45~65Hz
    Starting Impulse Current

    ≤10A

    		 Input Power Factor

    ≥0.99@220Vin, Pomax
    Rated Output Power

    2KW

    		 Typical Efficiency

    ≥93%
    Ripple Coefficient

    ≤1%

    		 Current Stabilization

    ≤5%
    Output Response

    ≤5s

    		 Humidity

    5%~95%
    IP Grade

    IP67

    		 Cooling Type

    Air Cooling
    Communication

    CAN Bus

    Environmental

    Operating Temperature

    -40~55℃
    Storage temperature

    -40~100℃
    Operating Temperature

    -40~55℃

    		 Storage temperature

    -40~100℃
    Weight 6100 g
    Dimensions 21 × 14.2 × 7.1 cm
    Rated Input Voltage

    220V
    Input voltage range

    90~265V
    Rated Input Frequency

    50Hz
    Input Frequency Range

    45~65Hz
    Starting Impulse Current

    ≤10A
    Input Power Factor

    ≥0.99@220Vin, Pomax
    Rated Output Power

    2KW
    Typical Efficiency

    ≥93%
    Ripple Coefficient

    ≤1%
    Current Stabilization

    ≤5%
    Output Response

    ≤5s
    Operating Temperature

    -40~55℃
    Storage temperature

    -40~100℃
    Humidity

    5%~95%
    IP Grade

    IP67
    Cooling Type

    Air Cooling
    Communication

    CAN Bus
