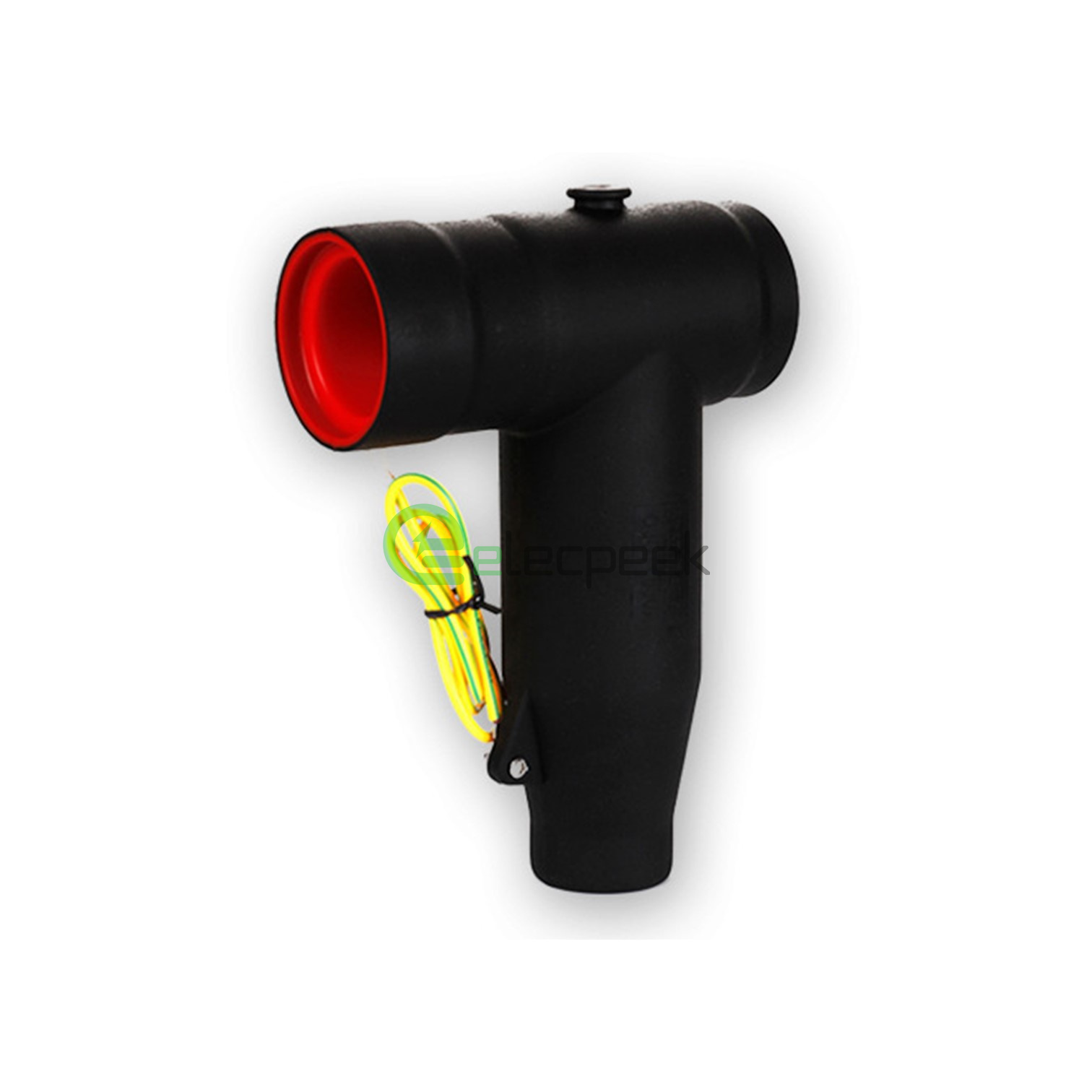

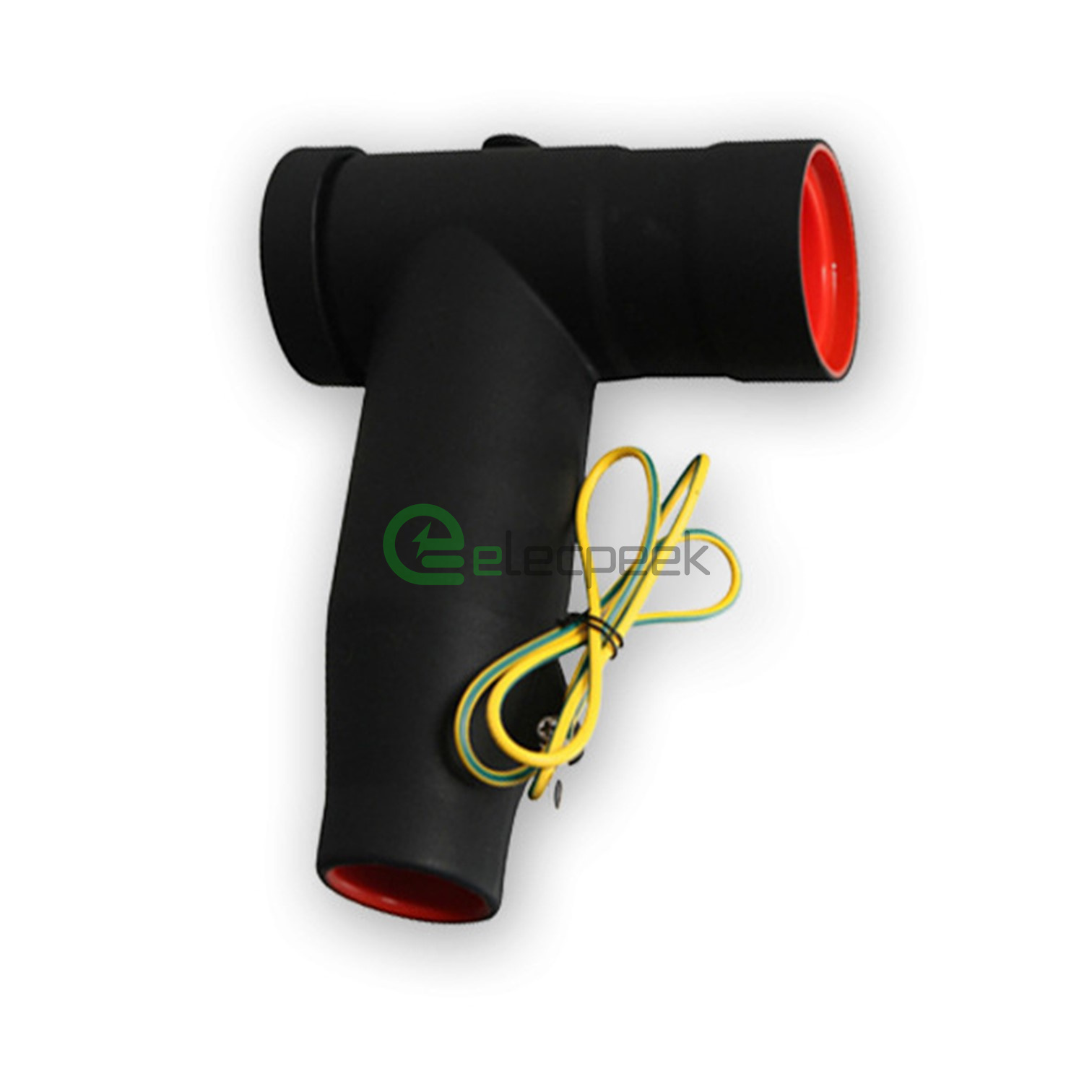

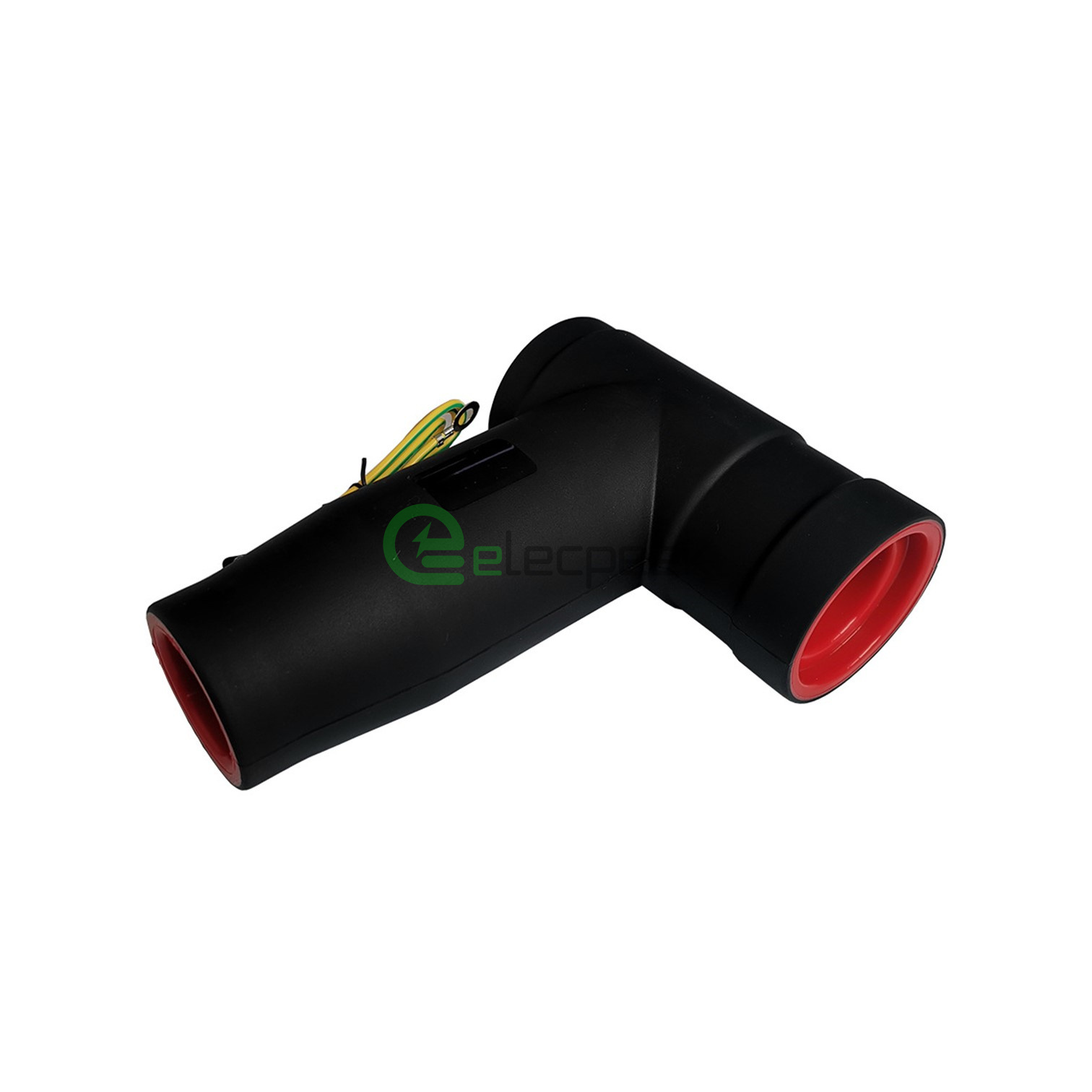

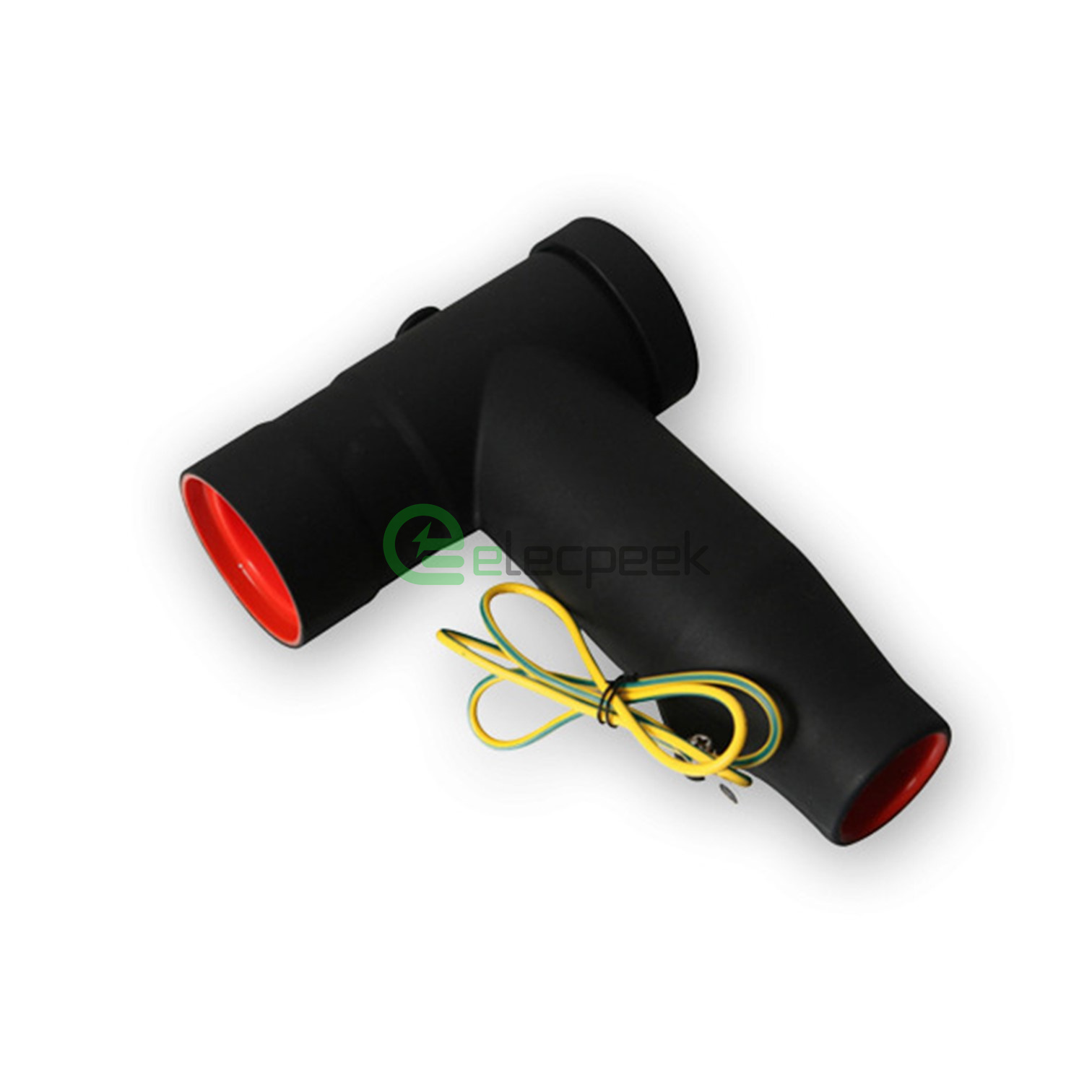

24KV 630A Screened Branch Separable Insulated Connectors for Bushing Type C

SKU: RHT-JB24630 Tags:

  • Easy and quick installation
  • Safe to touch and weatherproof
  • Range taking design to minimize product array
  • Can be disconnected/re-used

Get a Quotation

1. Multiple applications

Designed to meet the demands of IEC, IEEE, and GB/T power grids

2. Streamlined installation

Helps minimize errors and ensures a hassle-free setup process for electricians and technicians with easy installation.

3. Robust materials for extreme environments

Built with reliable materials, the separable connector offers exceptional durability and performance, even in harsh environmental conditions.

4. Enhanced safety features

Incorporates sensor technology and onsite testing capabilities, enhancing safety in power transmission systems and minimizing the risk of accidents.

5. Space-saving design

Optimizes space utilization and reduce the required product array, making it a cost-effective solution for power grid installations.

Electrical
Rated Voltage

12KV/20KV

Rated Current

630A

Electrical
Rated Voltage

12KV/20KV

Rated Current

630A

Withstand Voltage

24KV

Partial Discharge Voltage

52KV<10pC

5 min AC withstand voltage

117kV

15min DC withstand voltage

104KV

Impulse withstand voltage

200KV ± 10

Withstand Voltage

24KV

Partial Discharge Voltage

52KV<10pC

5 min AC withstand voltage

117kV

15min DC withstand voltage

104KV

Impulse withstand voltage

200KV ± 10

Specifications
Wire Gauge

25-400 mm2

Insulation Material

EPDM Rubber

Color

Black

Specifications
Wire Gauge

25-400 mm2

Insulation Material

EPDM Rubber

Color

Black

Rated Voltage

12KV/20KV

Rated Current

630A

Withstand Voltage

24KV

Partial Discharge Voltage

52KV<10pC

5 min AC withstand voltage

117kV

15min DC withstand voltage

104KV

Impulse withstand voltage

200KV ± 10

Wire Gauge

25-400 mm2

Insulation Material

EPDM Rubber

Color

Black

Q: Are these separable connectors compatible with different cable sizes?

A: Yes, our separable connectors are designed to be compatible with nearly any cable size or installation. Whether you are working with smaller gauge cables or larger diameter cables, our connectors have the flexibility to accommodate a wide range of sizes.

Q: Can these separable connectors be used in both above-ground and underground applications?

A: Absolutely! Our separable connectors are suitable for use in both above-ground and underground applications. They can handle the demands of various environments, providing a reliable and efficient electrical connection in a wide range of settings.

Q: What advantage do your separable connectors offer in the mining industry?

A: Our separable connectors offer several advantages in the mining industry. Their rugged design and high resistance to mechanical stress and vibrations make them reliable for use in mining operations. These connectors facilitate quick and easy connections, allowing for efficient installation and maintenance of electrical systems in mining sites, ultimately improving the overall safety and productivity of mining operations.
