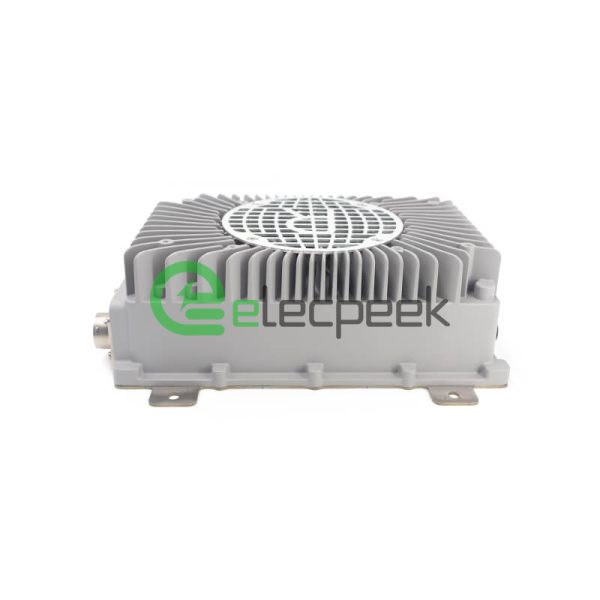

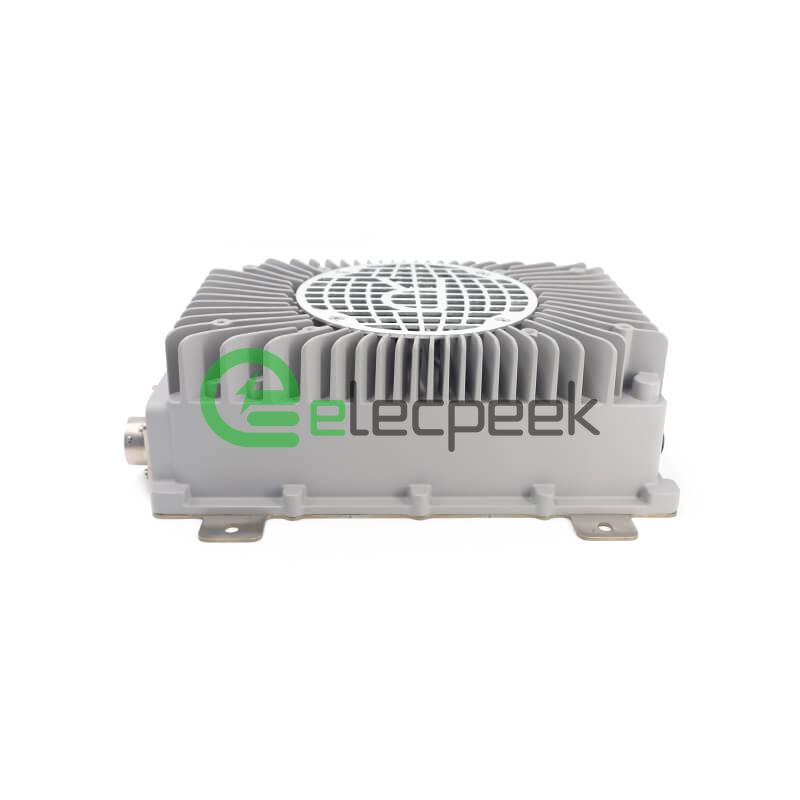

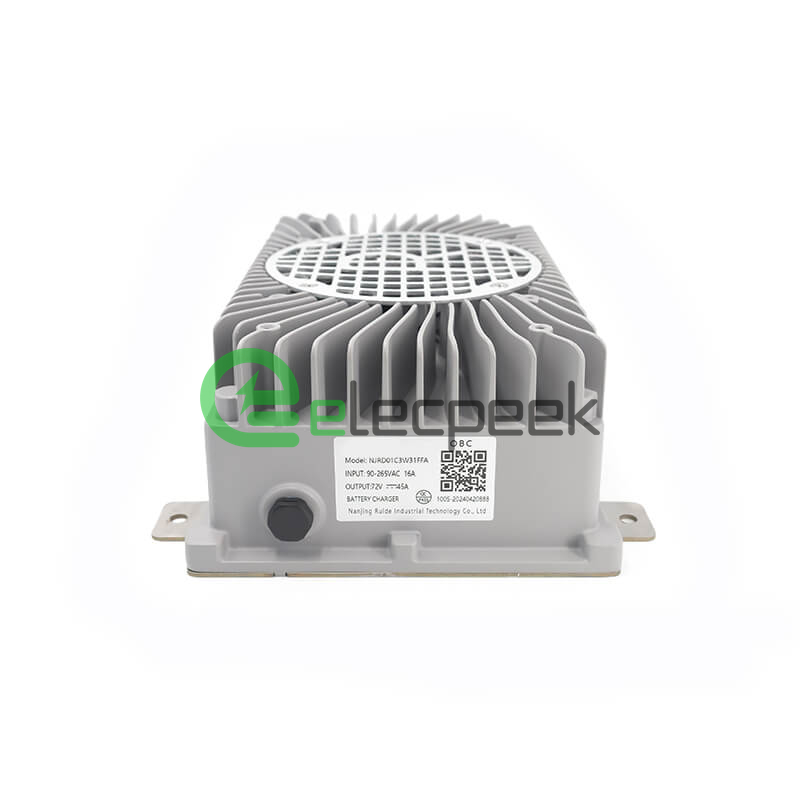

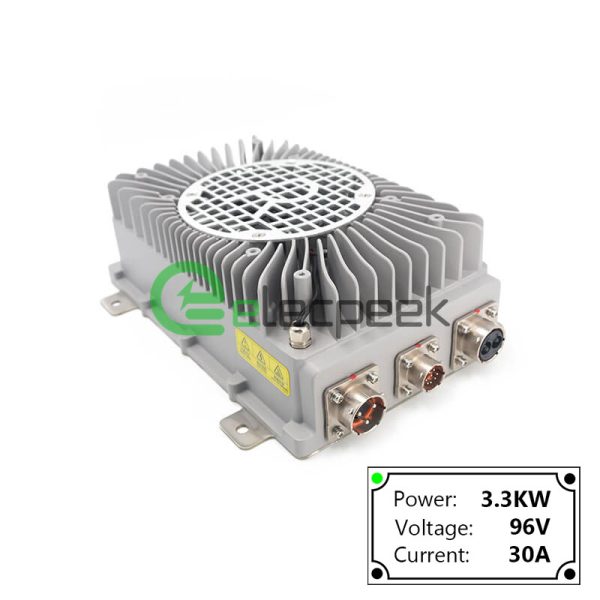

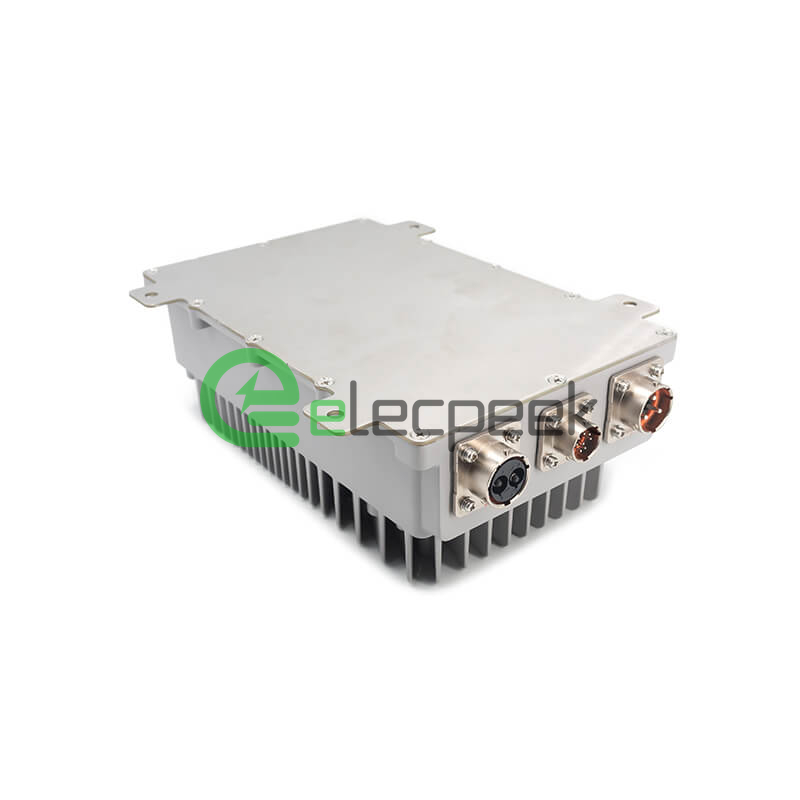

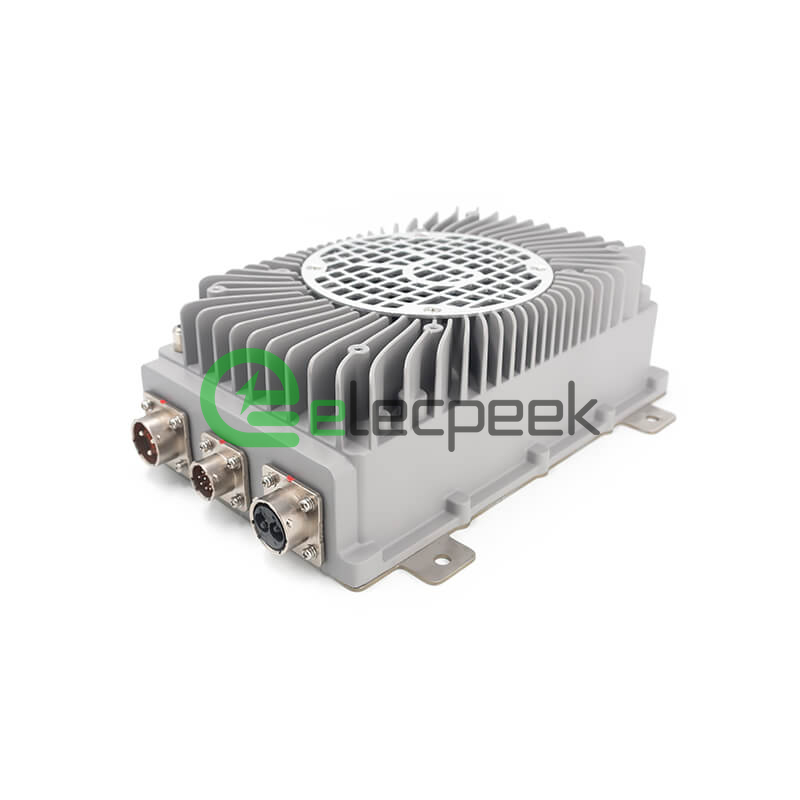

3.3KW 96V 30A Electric Vehicle On-board Charger for Advanced Systems

SKU: RHT-OBC-3.3KW-96V30A Tag:

The RHT-OBC-3.3KW-96V30A is a 3.3KW 96V 30A Electric Vehicle On-board Charger designed for advanced systems. It offers original factory quality and features efficient, safe, and reliable charging. This on-board charger is suitable for various electric vehicle applications.

Get a Quotation



The 3.3KW chargers from Elecpeek are available in a variety of voltages, providing a flexible output based on the specific needs of the connected battery system.

3.3KW On Board Charger Specification

3.3KW On Board Charger
Input Voltage 24V 48V 72V 108V 144V 360V
Output voltage(V) 15-32V 20-67V 30-90V 50-130V 110-180V 200-440V
Output current(A) 0-100A 0-60A 0-45A 0-30A 0-22A 0-9A
Rated input Voltage 220VAC
input voltage range 90-265VAC
Rated Input Voltage Frequency 50Hz
Input Frequency Range 45-65Hz
Starting Impulse Current ≤10A
Input Power Factor ≥0.99@220Vin,Pomax
Output Rated Output Power 3.3KW
Voltage Stabilization Accuracy ≤1%
Ripple Coefficient of Voltage ≤1%
Voltage Stabilization Accuracy ≤5%
Output Response Time ≤5S

3.3KW Charger Series

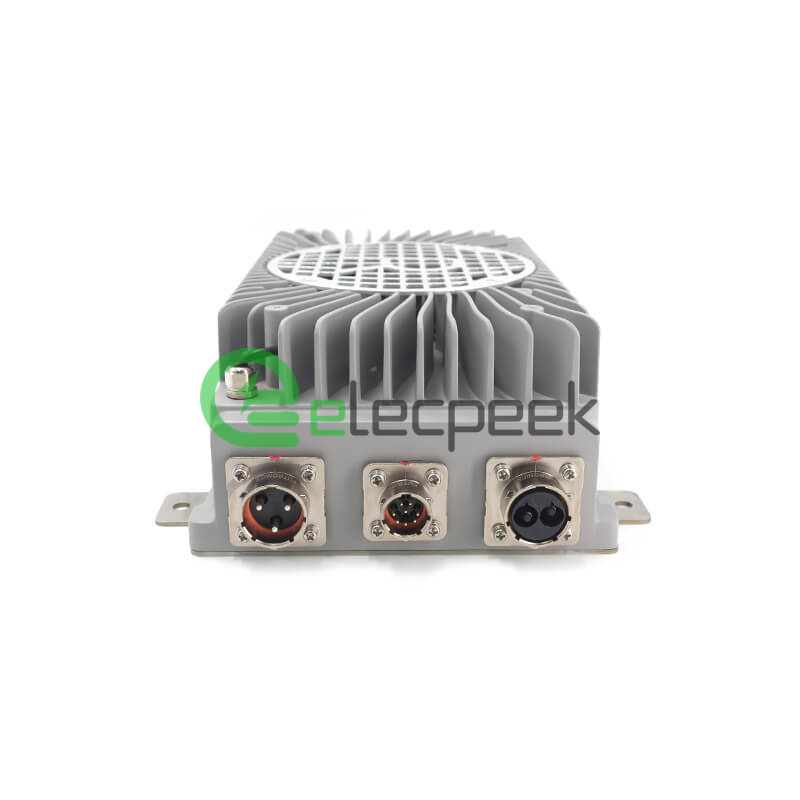

Plug and Socket Definition

Image Plug Type Pin Instruction Wire Diameter
Image Docking Plug
Model:Nominated
A Output Positive 6
B Output Negative 6
Image Docking Plug
Model:Nominated
A CANH 0.3
B CANL 0.3
C 12V+(200mA) 0.3
D 12V-(200mA) 0.3
E CC 0.3
F CP 0.3
G BAT+ 0.3
H BAT- 0.3
Image Docking Plug
Model:Nominated
F Input/L 2.5
B Input/N 2.5
D PE 2.5

Output Plug Options

Input Plug Options

Successful Projects

Project QTY: 500PCS
Item: 6.6KW On-board Charger
Location: Portland, United States

Project QTY:1200PCS
Item:20KW On-board Charger
Location:Russelsheim,Germany



Project QTY: 500PCS
Item: 6.6KW On-board Charger
Location: Portland, United States

Project QTY: 500PCS
Item: 6.6KW On-board Charger
Location: Portland, United States

Project QTY: 500PCS
Item: 6.6KW On-board Charger
Location: Portland, United States

Project QTY: 500PCS
Item: 6.6KW On-board Charger
Location: Portland, United States

Application

On-board chargers are integral components of electric vehicles (EVs) and plug-in hybrid electric vehicles (PHEVs). They convert Alternating Current (AC) from the grid (or any other AC source) to Direct Current (DC) for charging the vehicle's battery. Electric boats and other marine vehicles also use on-board chargers. These chargers may need to be particularly robust to withstand the harsh marine environment.

Electrical

Rated Input Voltage

220VAC

Input Voltage

90~456VAC

Input Frequency Range

45~65Hz

Starting Impulse Current

≤16A

Input Power Factor

≥0.99(@220Vin, Pomax)

Voltage Stabilization

≤1%

Ripple Coefficient

≤1%

Current Stabilization

≤5%

Typical Efficiency

≥93%

Humidity

5%~95%

Ip Grade

lp67

Communication

CAN bus control

Rated Input Voltage

220VAC

Input Voltage

90~456VAC

Input Frequency Range

45~65Hz

Starting Impulse Current

≤16A

Input Power Factor

≥0.99(@220Vin, Pomax)

Voltage Stabilization

≤1%

Ripple Coefficient

≤1%

Current Stabilization

≤5%

Typical Efficiency

≥93%

Humidity

5%~95%

Ip Grade

lp67

Communication

CAN bus control

Input Voltage Frequency

50Hz

Output Response Time

≤5S

Cooling Method

Forced air cooling

Input Voltage Frequency

50Hz

Output Response Time

≤5S

Cooling Method

Forced air cooling

Environmental

Operating Temperature

-40℃~55℃

Storage Temperature

-40℃~100℃

Operating Temperature

-40℃~55℃

Storage Temperature

-40℃~100℃

Dimensions 27.7 × 20.7 × 9 cm
Rated Input Voltage

220VAC

Input Voltage

90~456VAC

Input Voltage Frequency

50Hz

Input Frequency Range

45~65Hz

Starting Impulse Current

≤16A

Input Power Factor

≥0.99(@220Vin, Pomax)

Voltage Stabilization

≤1%

Ripple Coefficient

≤1%

Current Stabilization

≤5%

Output Response Time

≤5S

Typical Efficiency

≥93%

Operating Temperature

-40℃~55℃

Storage Temperature

-40℃~100℃

Humidity

5%~95%

Ip Grade

lp67

Cooling Method

Forced air cooling

Communication

CAN bus control
