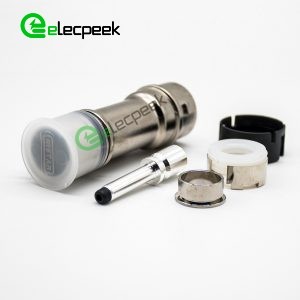

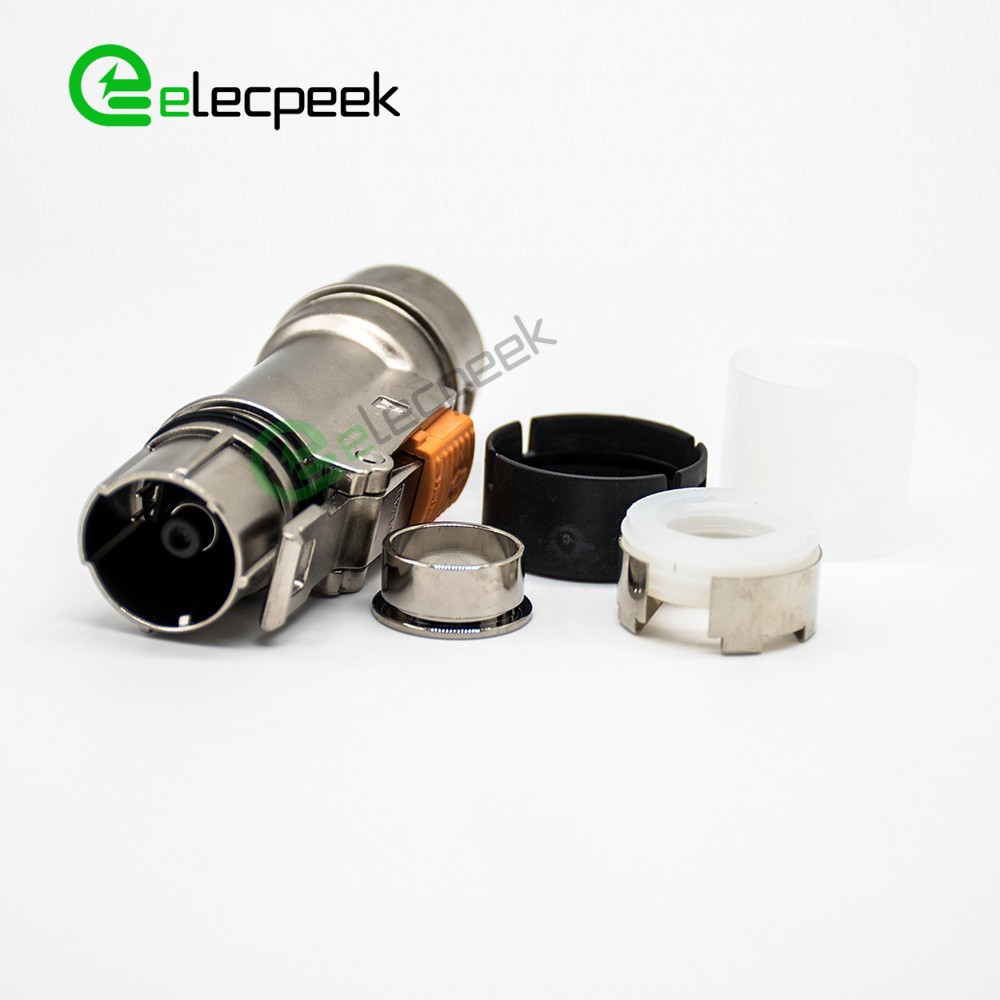

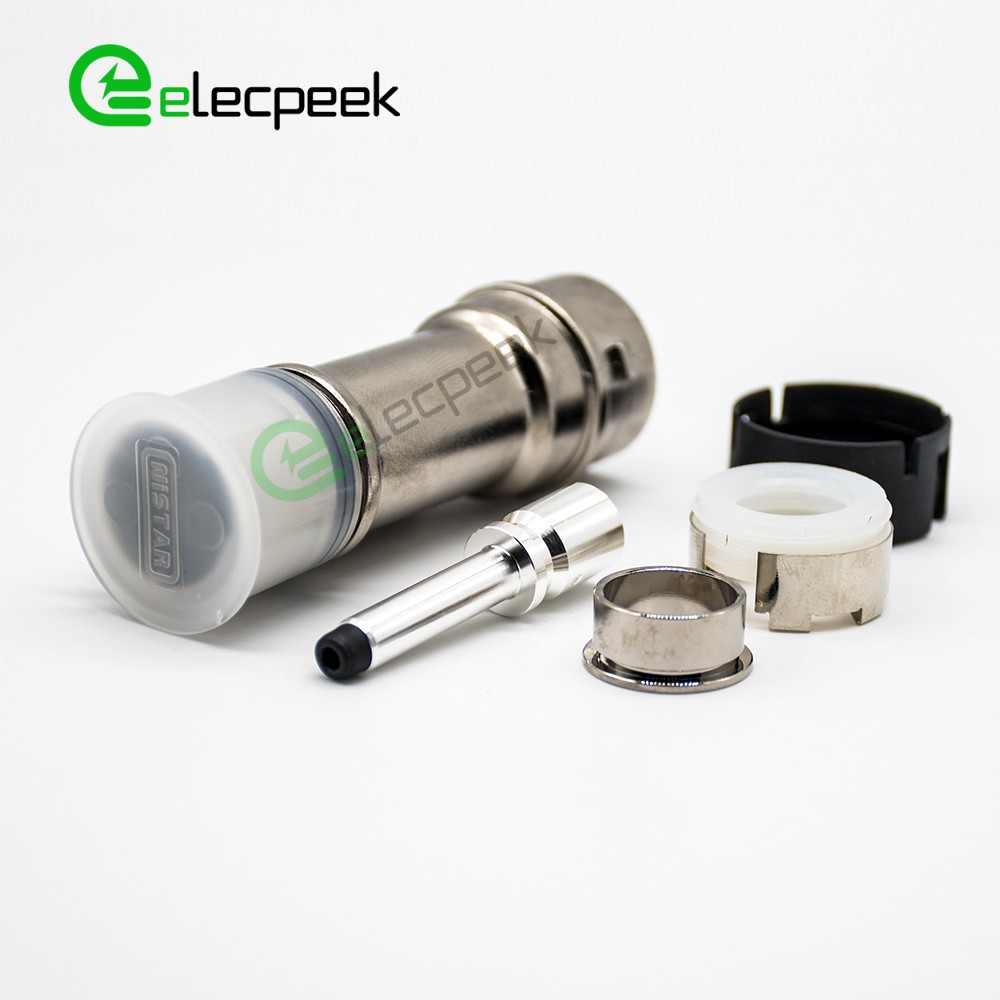

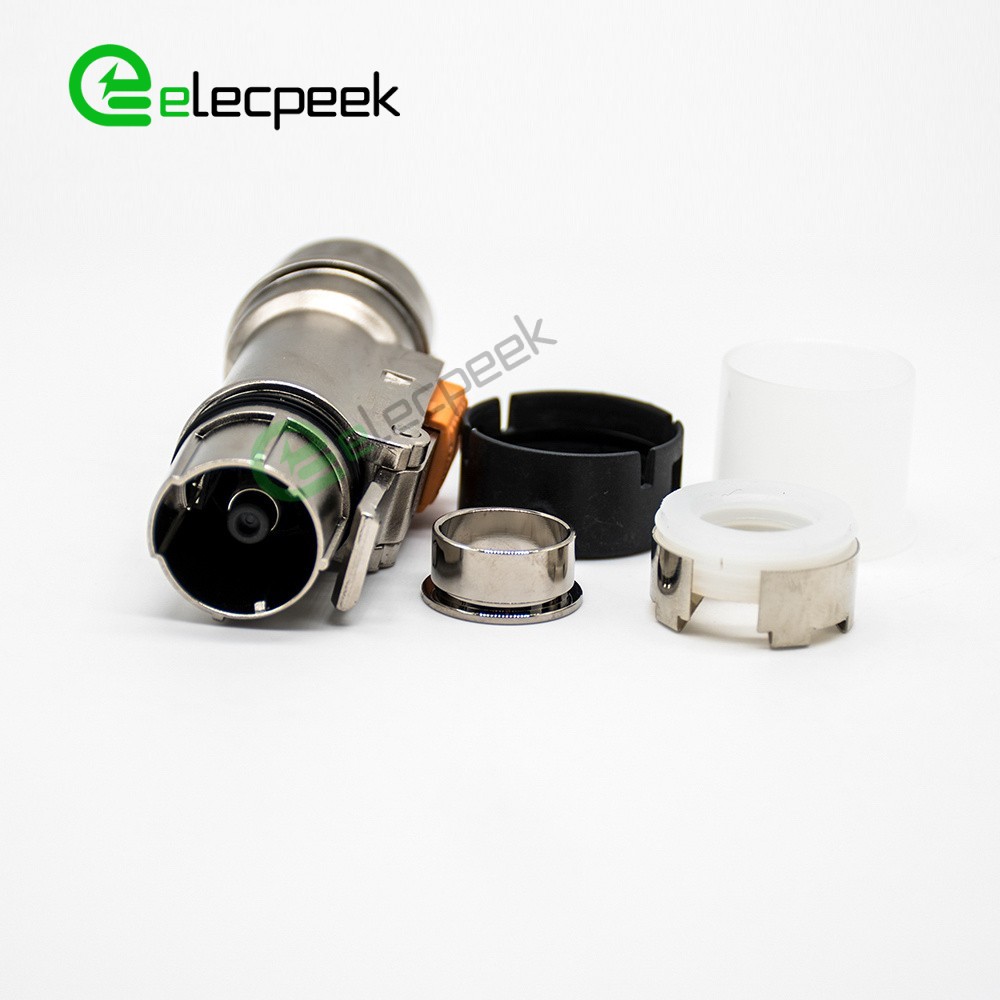

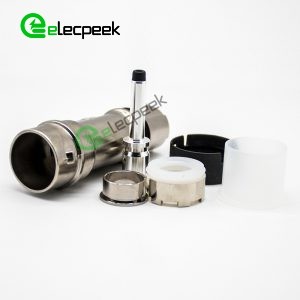

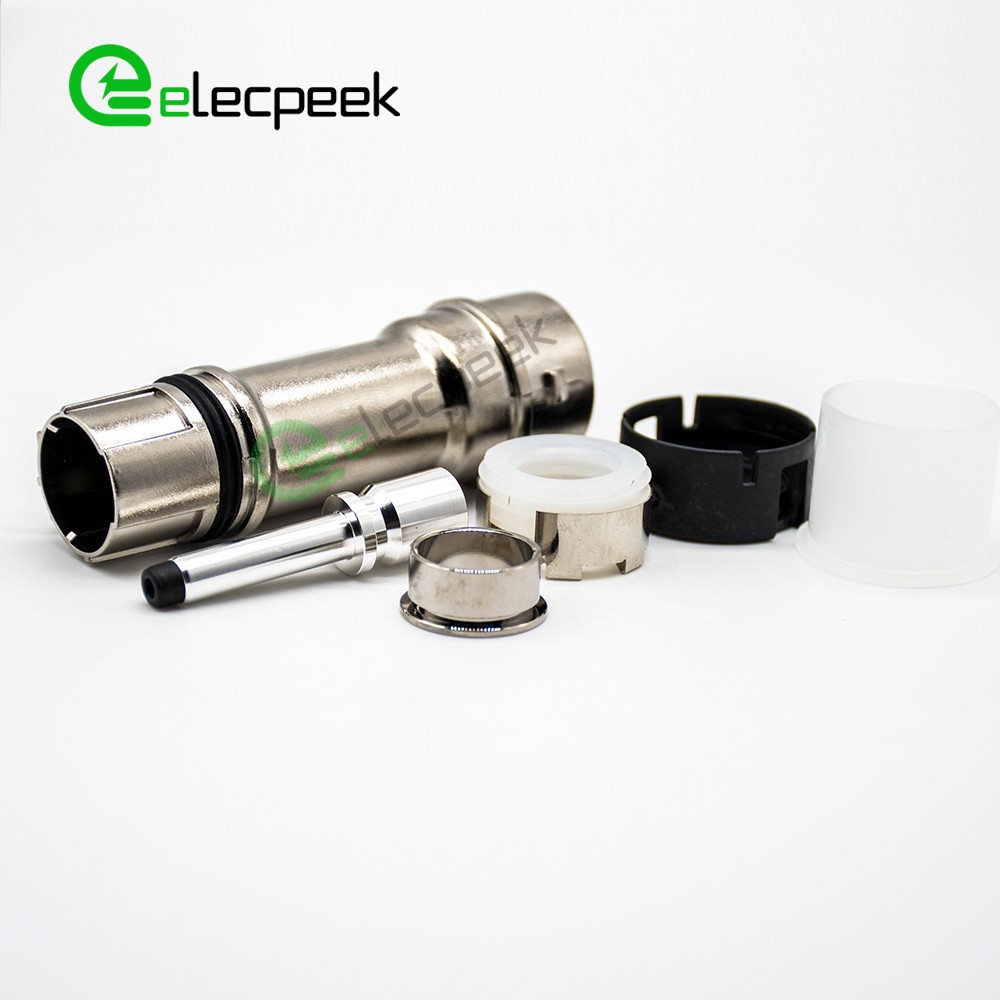

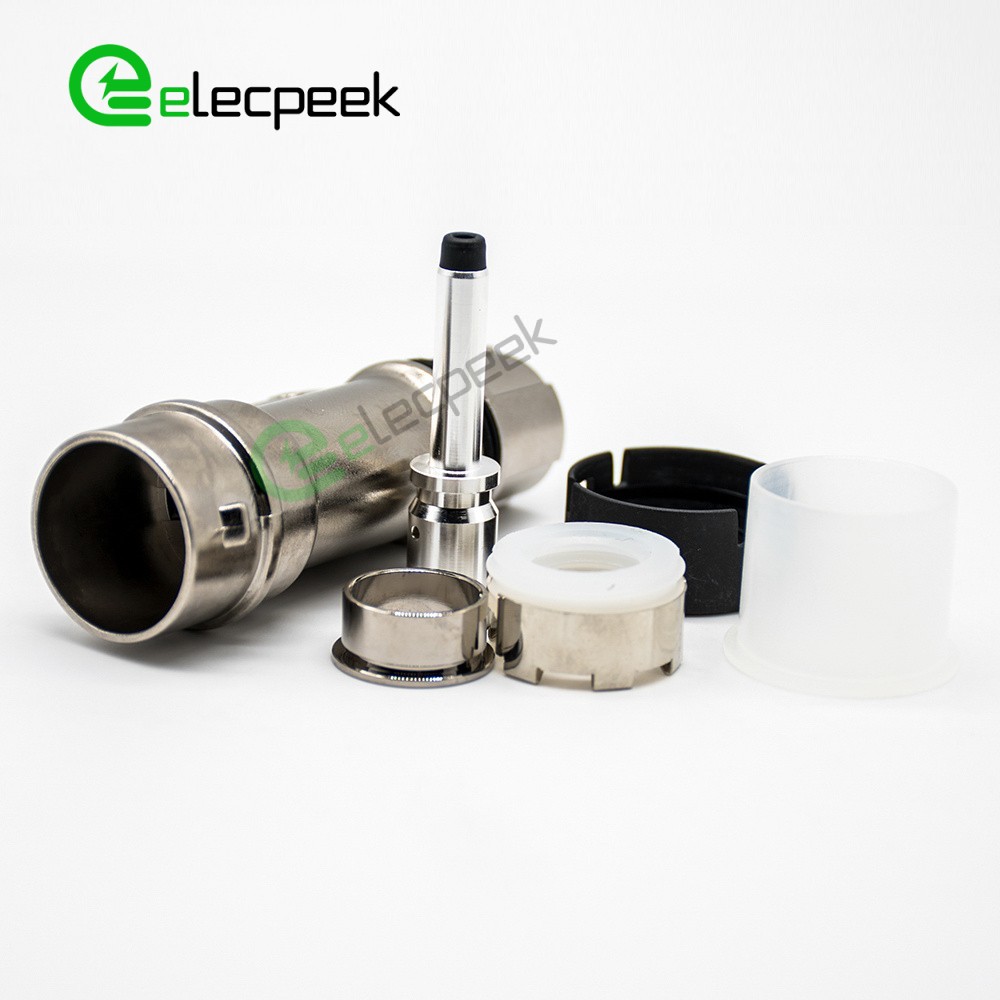

HVIL 125A Straight Plug High Voltage Interlock Connector 1Pin 6mm Metal Shell

  • Excellent Electrical Insulation.
  • Various Wire Diameter Application.
  • Multi Misplug-proof and Key Position Design.
  • Secondary Buckle.
  • Sealing, IP67,Touch-Proof.
  • Multiple Coding Positions.

Get a Quotation

High-voltage interlock (hvil for short), a safe design method that uses low-voltage signals to manage high-voltage circuits. In the high-voltage system design, in order to avoid the arcing caused by the high-voltage connector being opened and closed during the actual operation, the high-voltage connector should generally have the “high-voltage interlock” function.

High-voltage interlocks are often used in high-voltage electrical circuits, such as high-voltage connectors, msds, and high-voltage power distribution boxes.

The connector with high-voltage interlock can be disconnected by the logic sequence of the high-voltage interlock when it is unlocked when the power is on. the disconnection time is related to the difference in the effective contact length between the high-voltage interlock terminal and the power terminal. it is related to the speed when disconnected.

Under normal circumstances, the response time of the system to the interlock terminal circuit is between 10 and 100ms. when the disconnection (unplugging) time of the connected system is less than the system response time, there will be a safety risk of live plugging and unplugging, and the second unlocking is in order to solve this disconnection time problem, under normal circumstances, the secondary unlocking can effectively control the disconnection time above 1s to ensure safe operation.



High Voltage Interlock Connector (HVIL Connector)

Material
Shell: PA66, Zinc Alloy
Contacts: Copper Alloy, Silver Plating
Sealing: Rubber
Rated Voltage: 960V AC / 1000V DC
Electrical Performance
Rated Current: 16A, 35A, 50A, 125A, 150A, 200A, 250A, 400A, 500A
Withstand Voltage: 3000V AC
Insulation Resistance: ≥500MΩ
Cable Gauge: 2.5-150m㎡
Mechanical Performance
Connection Type: Terminal Machine
Mating Cycles: >100
Shielding: 360
Salt Spray: MAX 96h
Flammability Rating: UL94 V-0
Positions: 1/2/3 Pin
Environmental Performance
IP Degree: IP67  IP6K9K (Mated)
Operating Temperature: -40℃~125℃
Application
PDU Battery
Motor Motor Controller



Weight 61 g
Connector Type

Socket

Number of Positions

2 Pin

Body Material

Metal

Current Rating

125A

Orientation

Straight

Terminal

6mm
