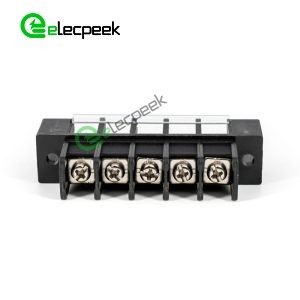

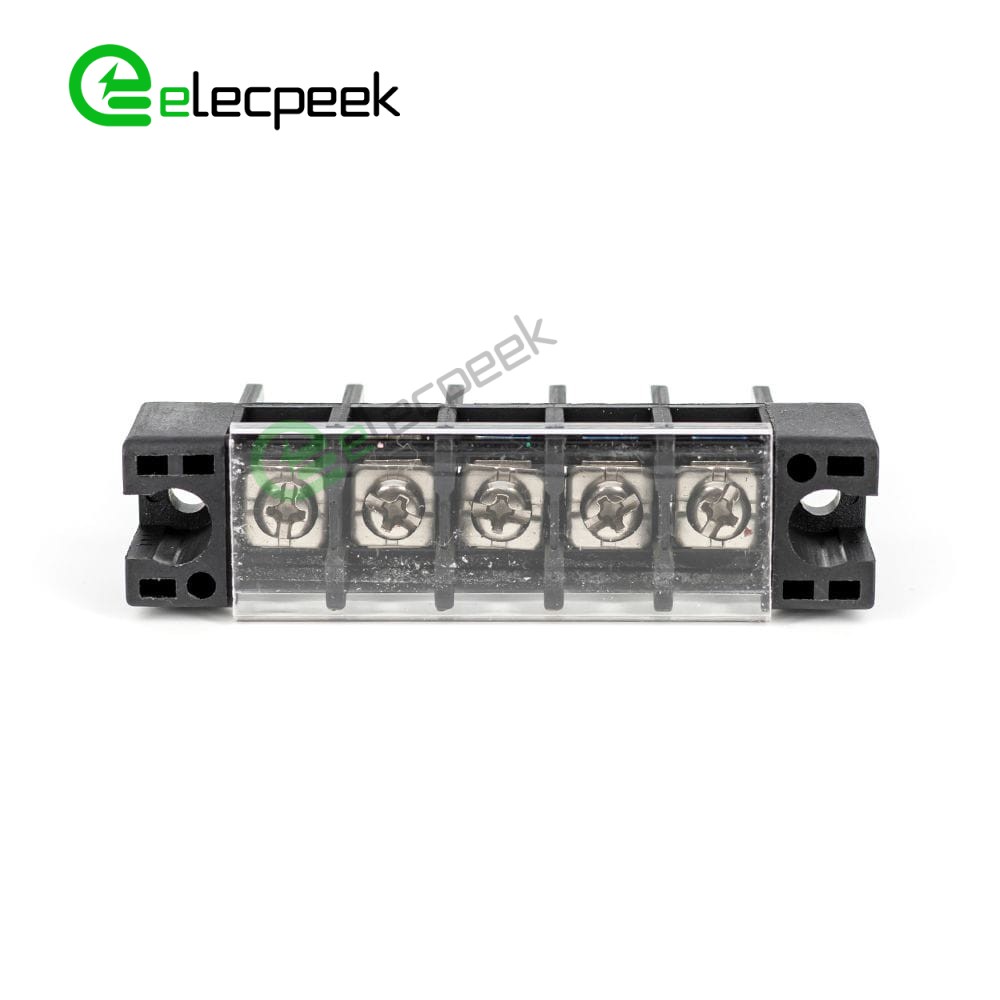

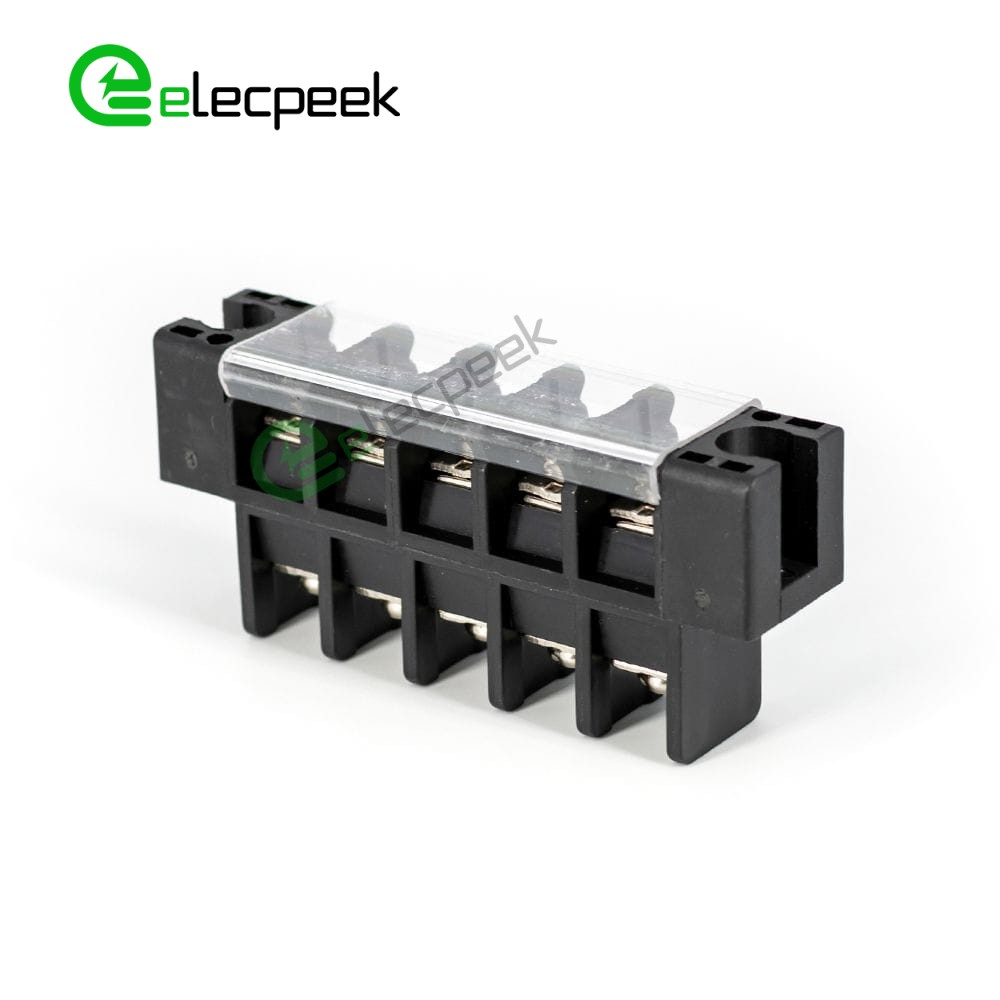

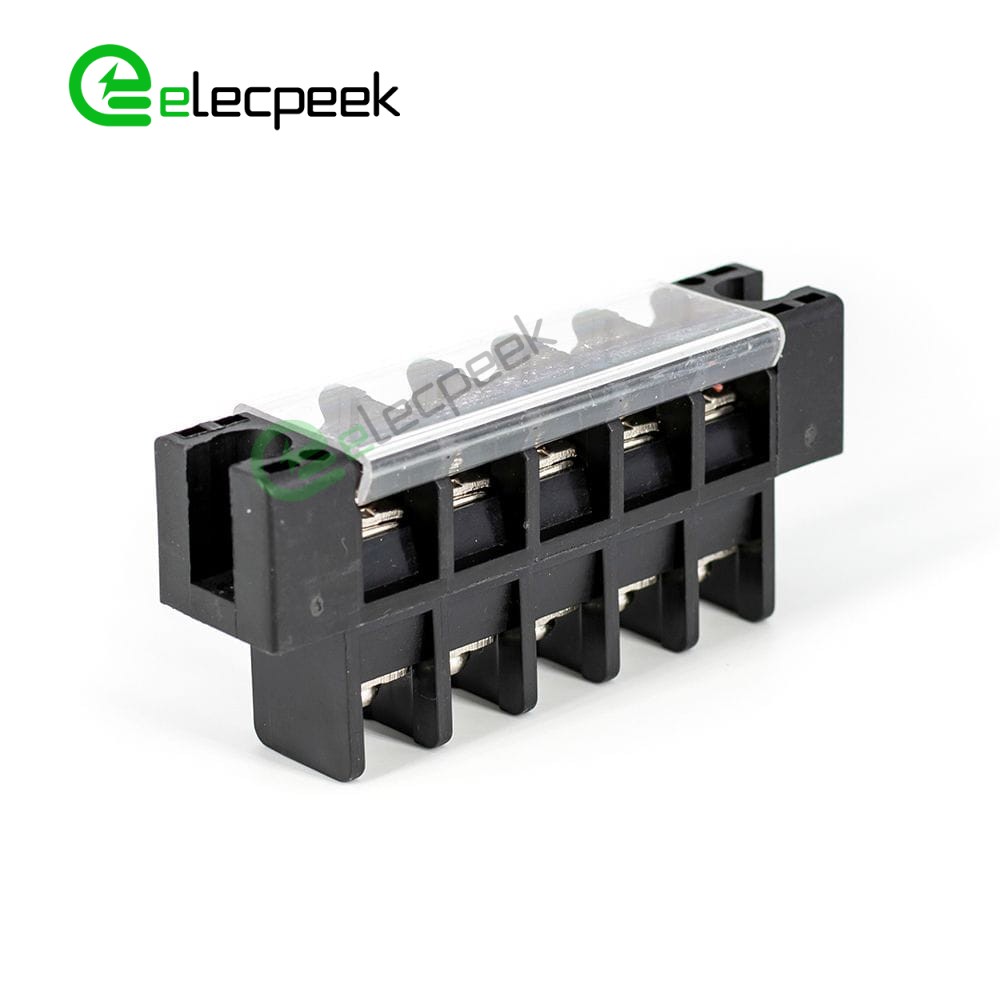

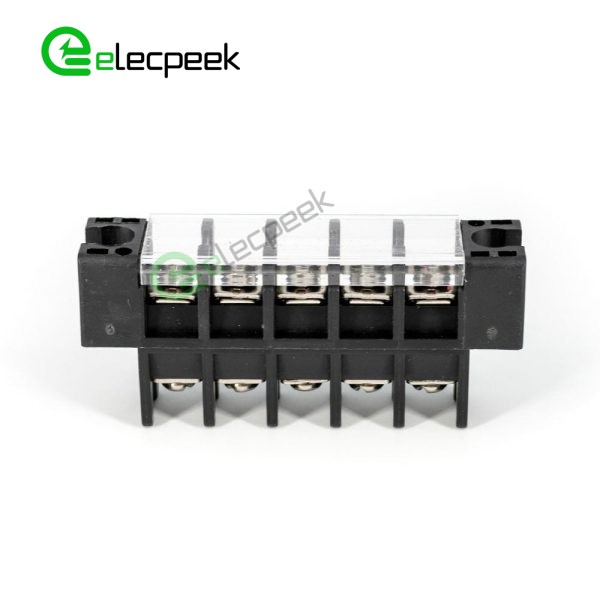

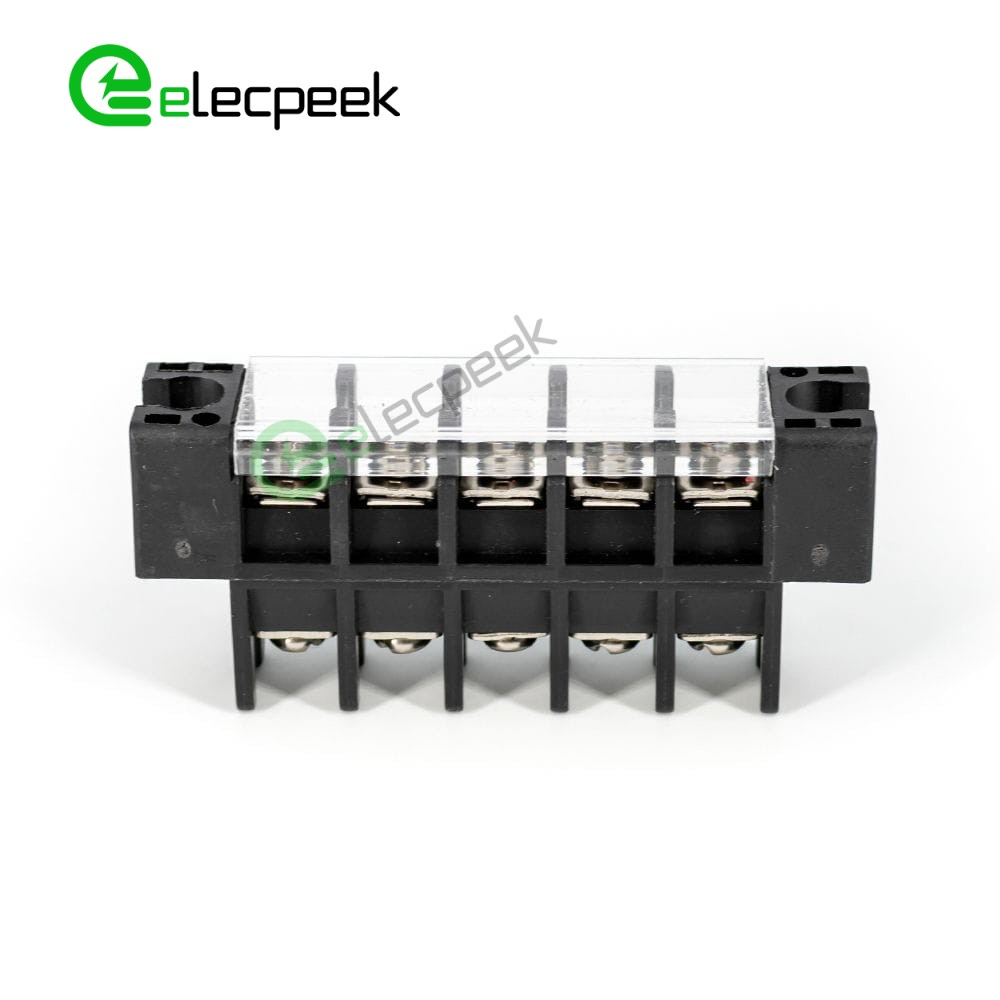

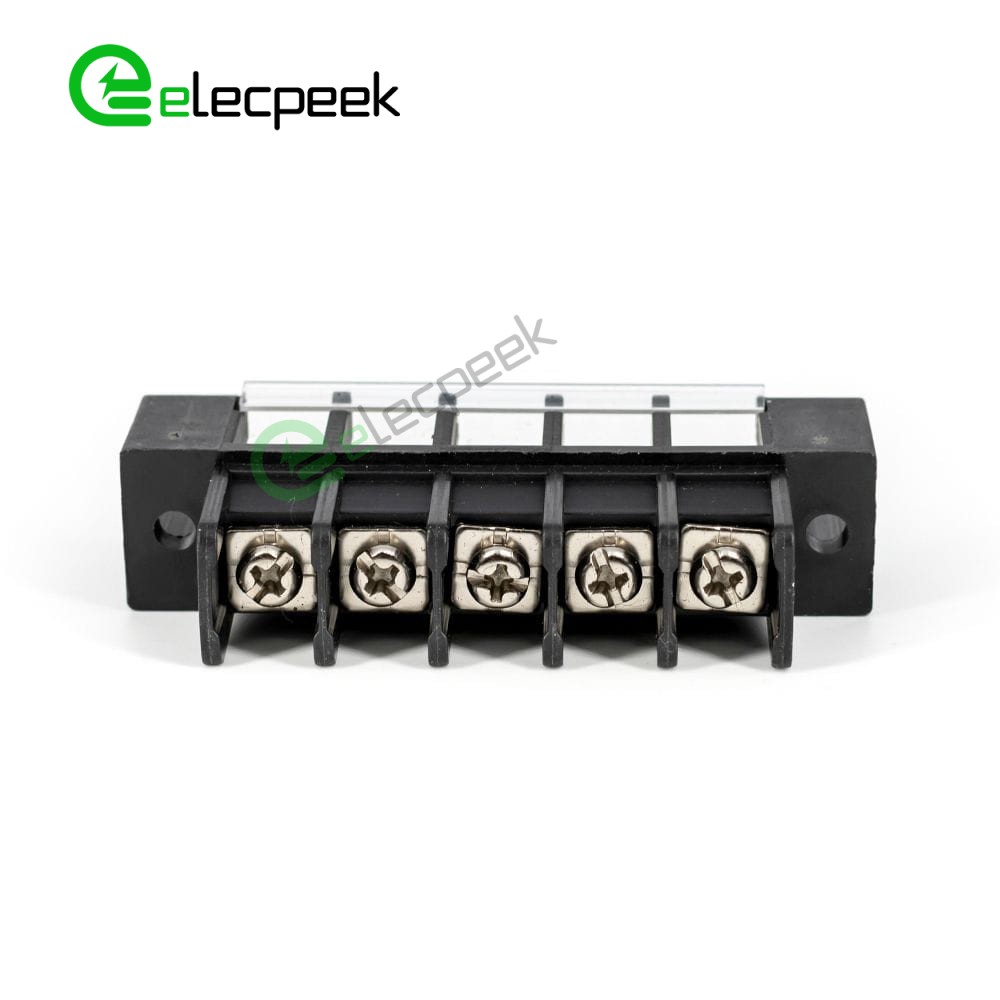

Panel Feed Through Terminal Block 5 Pin 30A 600V UL94-V0

SKU: RHT-NDT4-00-11.0-05P-C Tags:
  • Single In/Out, Two In One Out, Customizable
  • Three styles to choose from, consult customer service for details.
  • Pure Copper Thickened Conductor
  • Flame Retardant V0 Shell
  • Load Stability
  • Thickening Electroplating

Get a Quotation



The Panel Feed Through Terminal Block Connector is a versatile and dependable solution for seamless electrical connections. Crafted with a metal core enclosed in durable insulating plastic, this connector is optimized for both high current and high voltage environments. It features a straight orientation with copper contact material, catering to various pitches and positions. Available in both red and black, the connector is resilient across a temperature range of -40°C to +105°C.

Applications:
Primarily used in PCB setups, power supplies including frequency converters, server sites, and electric lighting, this connector is equally pivotal in motor and industrial controls, rail transportation, communication systems, and safety infrastructure like security and medical equipment.

Its compact yet flexible design ensures a safe, reliable, and effective connection across diverse industries and applications.

Panel Feed Through Terminal Block 5 Pin 30A 600V UL94-V0 Feature

Product Type
Orientation: Straight
Number Of Input Positions: 5
Number Of Output Positions : 5
Color: Black
Mounting Type: Panel Mount
Docking Method: Thread
Terminal Block Type : Bulkhead Terminal Block
Top Termination: Screw with Fastening Plate
Bottom Termination: Screw
Terminal Material: Cooper
Insulation Material: PBT
Pitch: 11mm
Wire Gauge: 2.5mm²-4mm²
Electrical
Rated Current: 30A
Rated Voltage: 600V
Withstand Voltage Value: AC 3000V
Insulation Resistance: DC 500V 1000MΩ or more
Operating Temperature -40℃~105℃
Standards and Specifications
Relative Humidity: 5% to 95%
Flammability: UL94-V0

Panel Feed Through Terminal Block Drawing

Weight 71 g
Orientation

Straight

Number of Input Positions

5

Number of Output Positions

5

Color

Black

Mounting Type

Panel Mount

Docking Method

Thread

Terminal Block Type

Bulkhead Terminal Block

Top Termination

Screw with Fastening Plate

Bottom Termination

Screw

Terminal Material

Cooper

Insulator Material

PBT

Current Rating

30A

Voltage Rating

600V

Withstand Voltage Value

AC 3000V

Insulation Resistance

DC 500V 1000MΩ or more

Pitch

11mm

Wire Gauge

2.5mm²-4mm²

Working Temperature

-40℃~105℃

Relative Humidity

5% to 95%

Flammability Rating

V0
