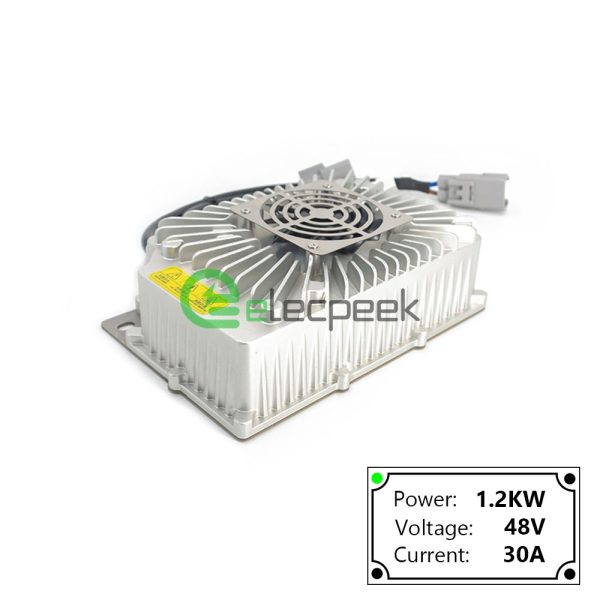

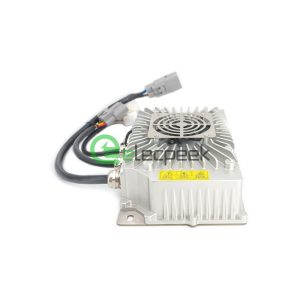

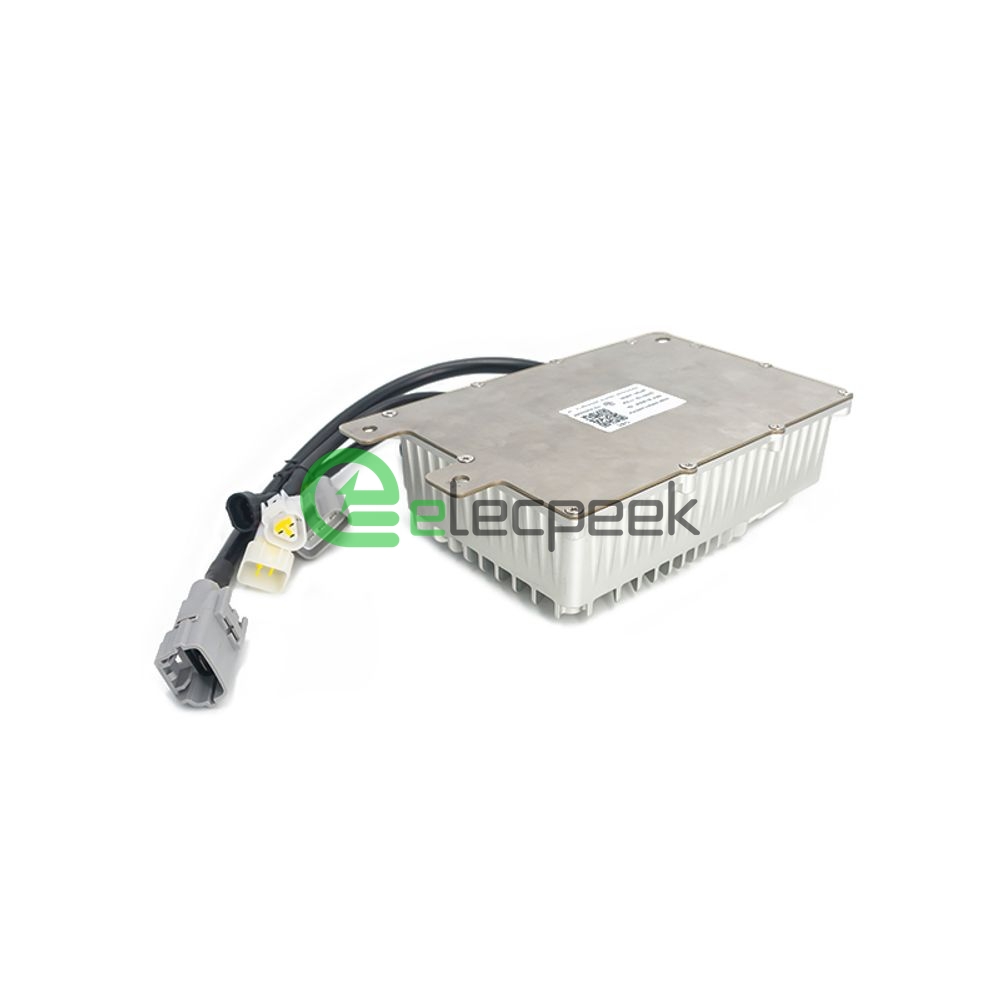

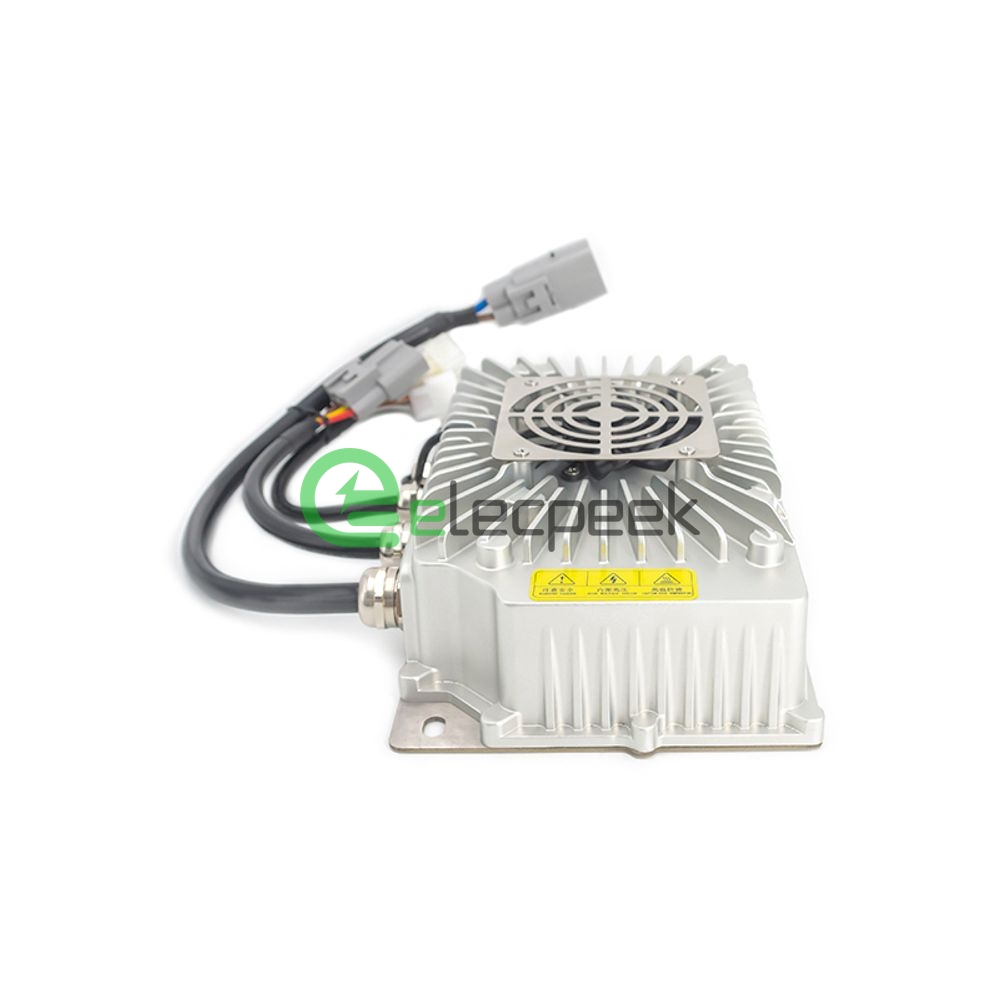

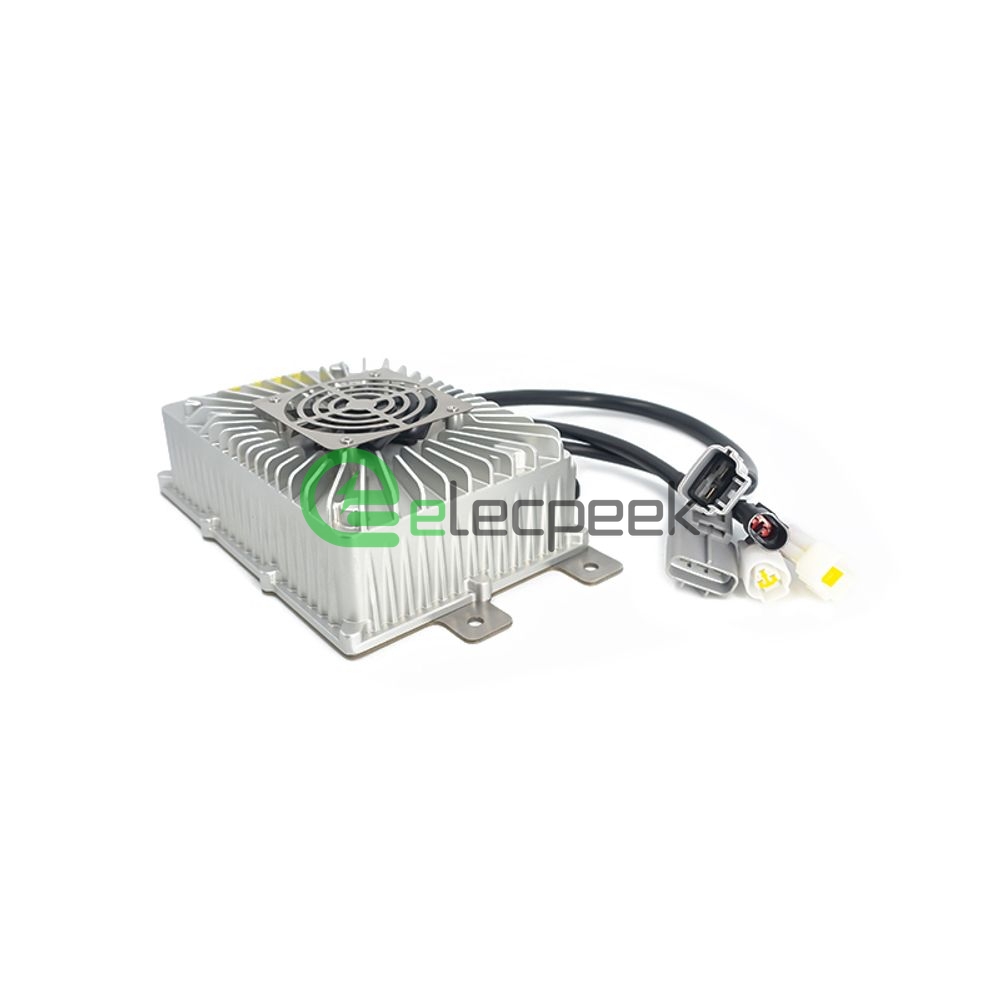

1.2KW 48V 30A Electric Vehicle On-board Charger for Efficient Charging

SKU: RHT-OBC-1.2KW-48V30A

The RHT-OBC-1.2KW-48V30 Electric Vehicle On-board Charger is a high-efficiency charging solution for your electric vehicle. This 1.2KW, 48V, 30A charger offers original factory quality and features efficient charging capabilities. Upgrade your electric vehicle’s charging experience with this reliable and efficient on-board charger.

Get a Quotation



Elecpeek specializes in providing a comprehensive range of high-quality battery chargers designed specifically for Club Car and golf cart applications, compatible with both lithium-ion and lead-acid battery types. These chargers are meticulously engineered to accommodate a wide voltage spectrum, ensuring compatibility with various electric vehicle systems, including 24V, 48V, 72V, 108V, 144V, and even the more robust 360V configurations.

1.2KW On-board Charger Specification

1.2KW On-board Charger
Input Voltage 24V 60V 72V 108V 144V 360V
Output voltage(V) 15-32V 20-80V 30-90V 50-130V 110-180V 200-440V
Output current(A) 0-60A 0-35A 0-25A 0-18A 0-18A 0-6A
Rated input Voltage 220VAC
input voltage range 90-265VAC
Rated Input Voltage Frequency 50Hz
Input Frequency Range 45-65Hz
Starting Impulse Current ≤10A
Input Power Factor ≥0.99@220Vin,Pomax
Output Rated Output Power 1.2KW
Voltage Stabilization Accuracy ≤1%
Ripple Coefficient of Voltage ≤1%
Voltage Stabilization Accuracy ≤5%
Output Response Time ≤5S

1.2KW On-board Charger Series

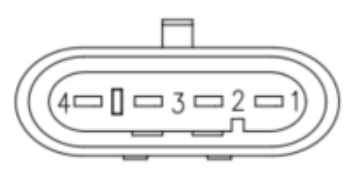

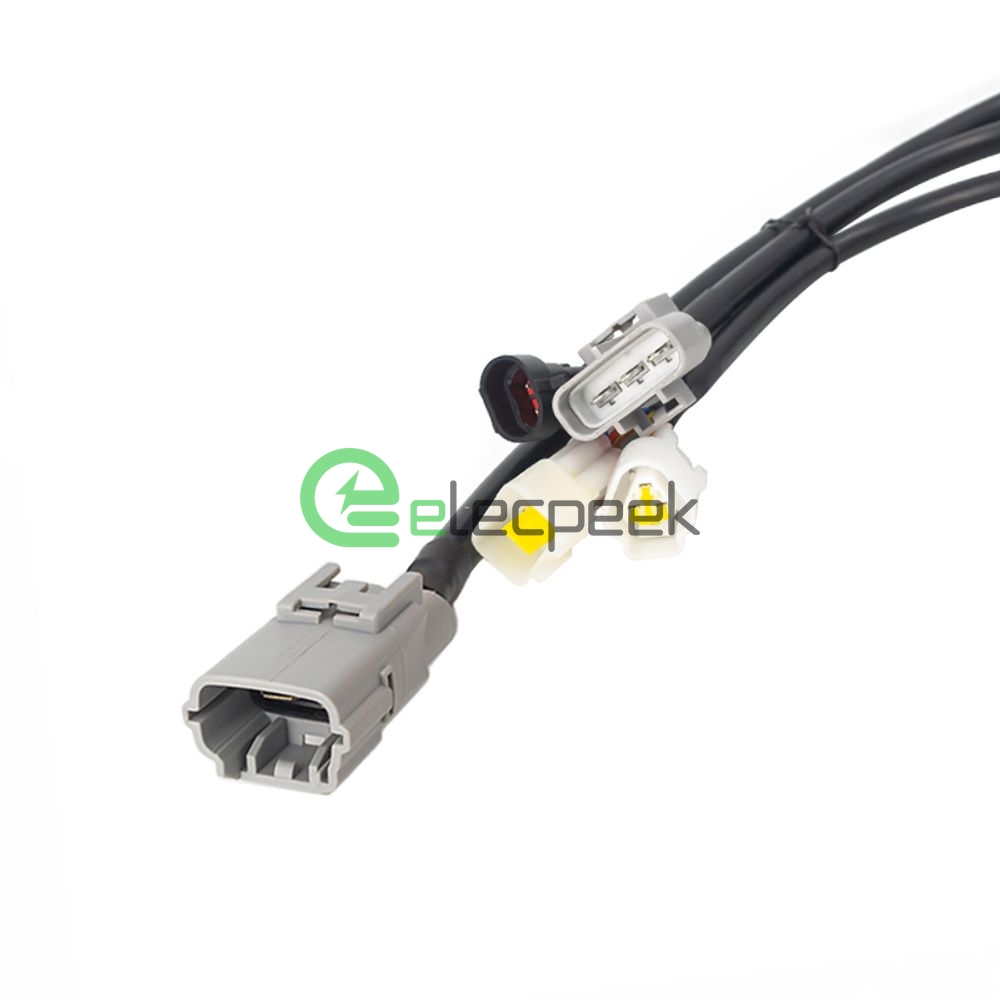

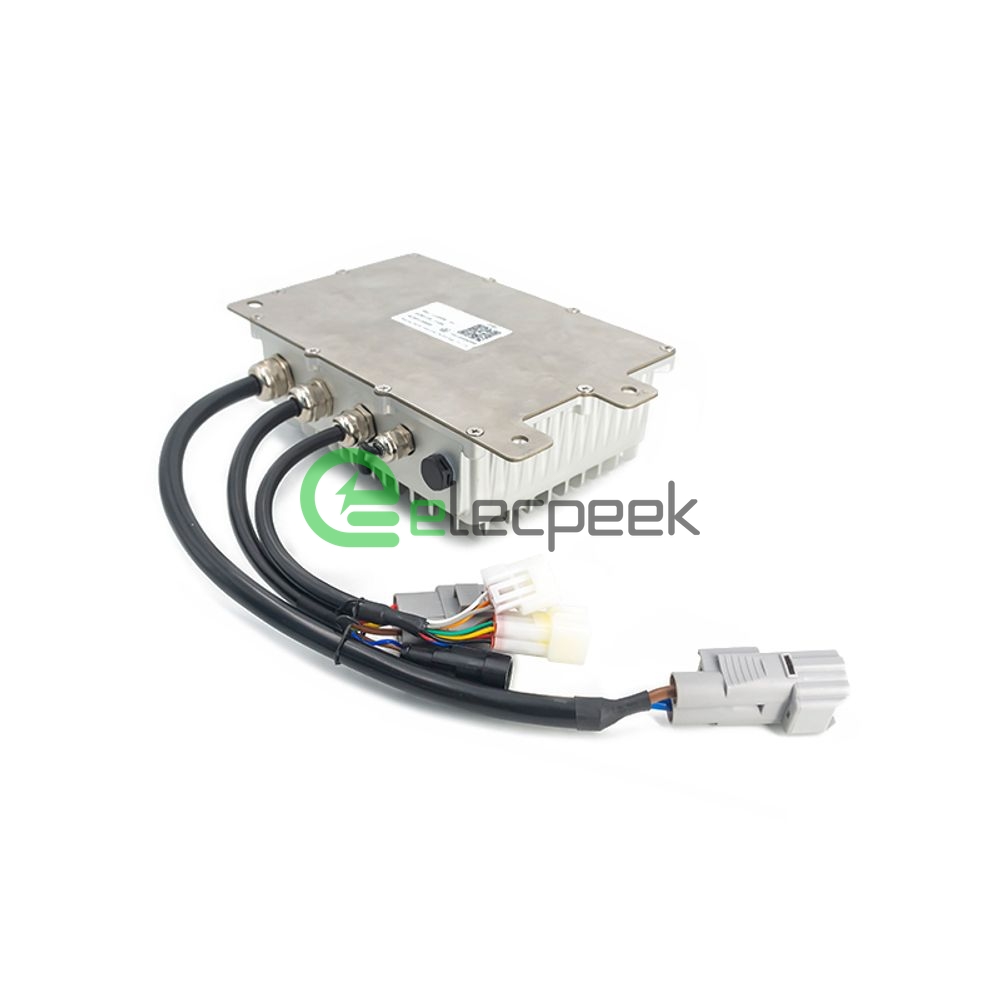

Plug and Socket Definition

Image Plug Type Pin Instruction Wire Diameter
Image Docking Plug
Model:Nominated
1 Output Positive 4
2 Output Negative 4
Image Docking Plug
Model:Nominated
1 CANH Reserve
2 CANL Reserve
3 12V_IN+ Reserve
4 12V_IN- Reserve
Image Docking Plug
Model:Nominated
1 Input/L 2.5
2 PE 2.5
3 Input/N 2.5
Image Docking Plug
Model:Nominated
1 CC Reserve
2 CP Reserve

Output Plug Options

Input Plug Options

Successful Projects

Project QTY: 500PCS
Item: 6.6KW On-board Charger
Location: Portland, United States

Project QTY:1200PCS
Item:20KW On-board Charger
Location:Russelsheim,Germany



Project QTY: 500PCS
Item: 6.6KW On-board Charger
Location: Portland, United States

Project QTY: 500PCS
Item: 6.6KW On-board Charger
Location: Portland, United States

Project QTY: 500PCS
Item: 6.6KW On-board Charger
Location: Portland, United States

Project QTY: 500PCS
Item: 6.6KW On-board Charger
Location: Portland, United States

Application

On-board chargers are integral components of electric vehicles (EVs) and plug-in hybrid electric vehicles (PHEVs). They convert Alternating Current (AC) from the grid (or any other AC source) to Direct Current (DC) for charging the vehicle's battery. Electric boats and other marine vehicles also use on-board chargers. These chargers may need to be particularly robust to withstand the harsh marine environment.

Electrical

Rated Input Voltage

220V

Input voltage range

90~265V

Rated Input Frequency

50Hz

Input Frequency Range

45~65Hz

Starting Impulse Current

≤10A

Input Power Factor

≥0.99@220Vin, Pomax

Rated Output Power

1.2KW

Typical Efficiency

≥93%

Ripple Coefficient

≤1%

Current Stabilization

≤5%

Output Response

≤5s

Humidity

5%~95%

IP Grade

IP67

Cooling Type

Air Cooling

Communication

CAN Bus

Rated Input Voltage

220V

Input voltage range

90~265V

Rated Input Frequency

50Hz

Input Frequency Range

45~65Hz

Starting Impulse Current

≤10A

Input Power Factor

≥0.99@220Vin, Pomax

Rated Output Power

1.2KW

Typical Efficiency

≥93%

Ripple Coefficient

≤1%

Current Stabilization

≤5%

Output Response

≤5s

Humidity

5%~95%

IP Grade

IP67

Cooling Type

Air Cooling

Communication

CAN Bus

Environmental

Operating Temperature

-40~55℃

Storage temperature

-40~100℃

Operating Temperature

-40~55℃

Storage temperature

-40~100℃

Weight 6100 g
Dimensions 21 × 14.2 × 7.1 cm
Rated Input Voltage

220V

Input voltage range

90~265V

Rated Input Frequency

50Hz

Input Frequency Range

45~65Hz

Starting Impulse Current

≤10A

Input Power Factor

≥0.99@220Vin, Pomax

Rated Output Power

1.2KW

Typical Efficiency

≥93%

Ripple Coefficient

≤1%

Current Stabilization

≤5%

Output Response

≤5s

Operating Temperature

-40~55℃

Storage temperature

-40~100℃

Humidity

5%~95%

IP Grade

IP67

Cooling Type

Air Cooling

Communication

CAN Bus

What charging stations does On-Board Charger (OBC) support?

The charging station support of OBC depends on its compatible charging interface standard, including home charging posts, public charging stations, etc.

The compatibility and standards of OBC include charging interface standards, charging rates, communication protocols, and safety standards.

The reliability and durability of OBC depend on the following factors:

  • Design quality and manufacturing process
  • Temperature management
  • Overload protection
  • Environmental adaptability

Smart features of OBC may include remote monitoring, charging appointments, charging schedule optimization, charging history, smart energy management, charging location navigation, and remote diagnostics and maintenance.

The safety of OBC is realized through measures such as overload protection, short circuit protection, temperature monitoring and strict compliance with safety standards.

Elecpeek's On-Board Charger works by converting AC power from an external source, such as a charging station or wall outlet, into DC power that can be stored in the EV battery.



The charging time for an EV using OBC depends on the battery size, charge level, and the charging speed provided by the charger. Typically, it takes between 1 to 12 hours to fully charge an EV using OBC.



Yes, a damaged or faulty OBC can result in overcharging, overcharging, or overheating the battery, which can decrease the lifespan of the battery. It is essential to ensure the proper maintenance and functioning of OBC.



OBC is used for level 1 and 2 charging and provides a lower charging speed than a DC fast charger. DC fast chargers are used for level 3 charging and can provide up to 80% charging in 30 minutes.



Yes, hybrid vehicles also use OBC to charge the battery.
